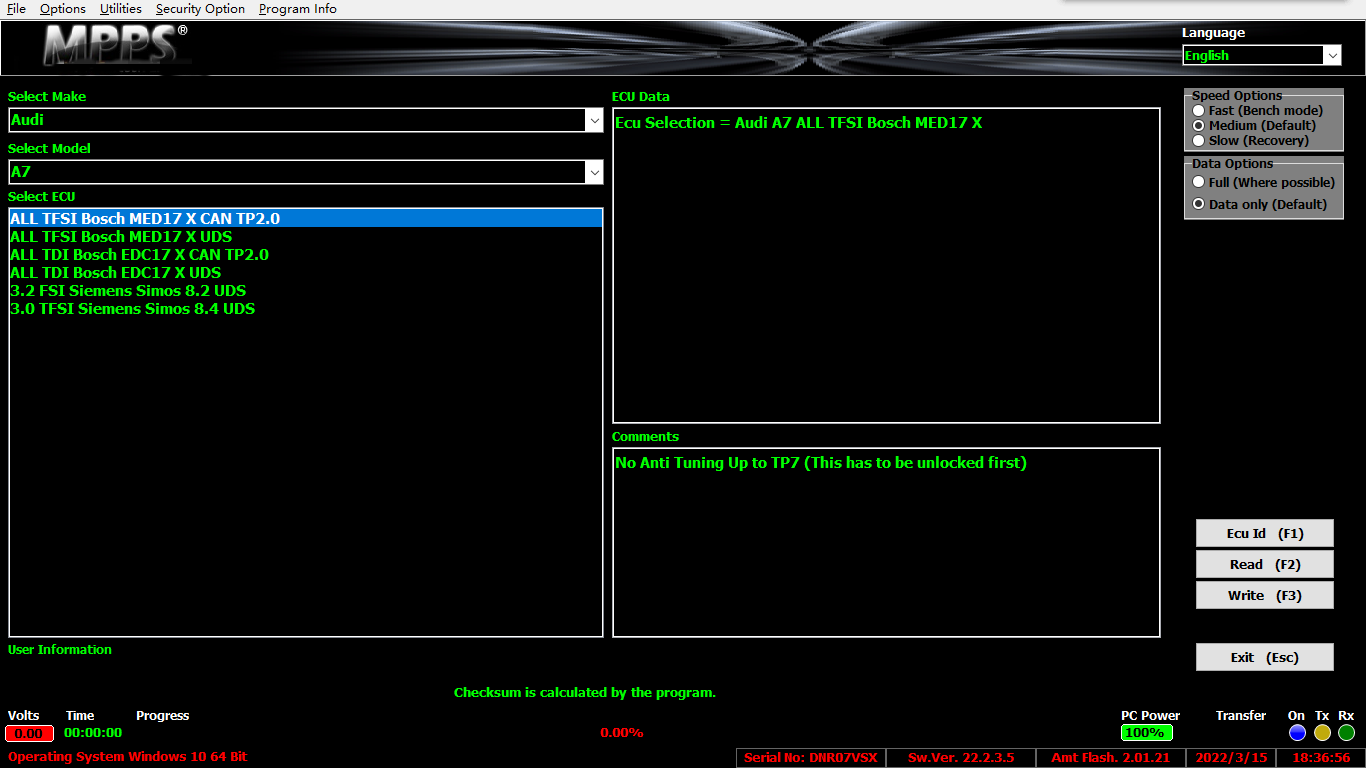

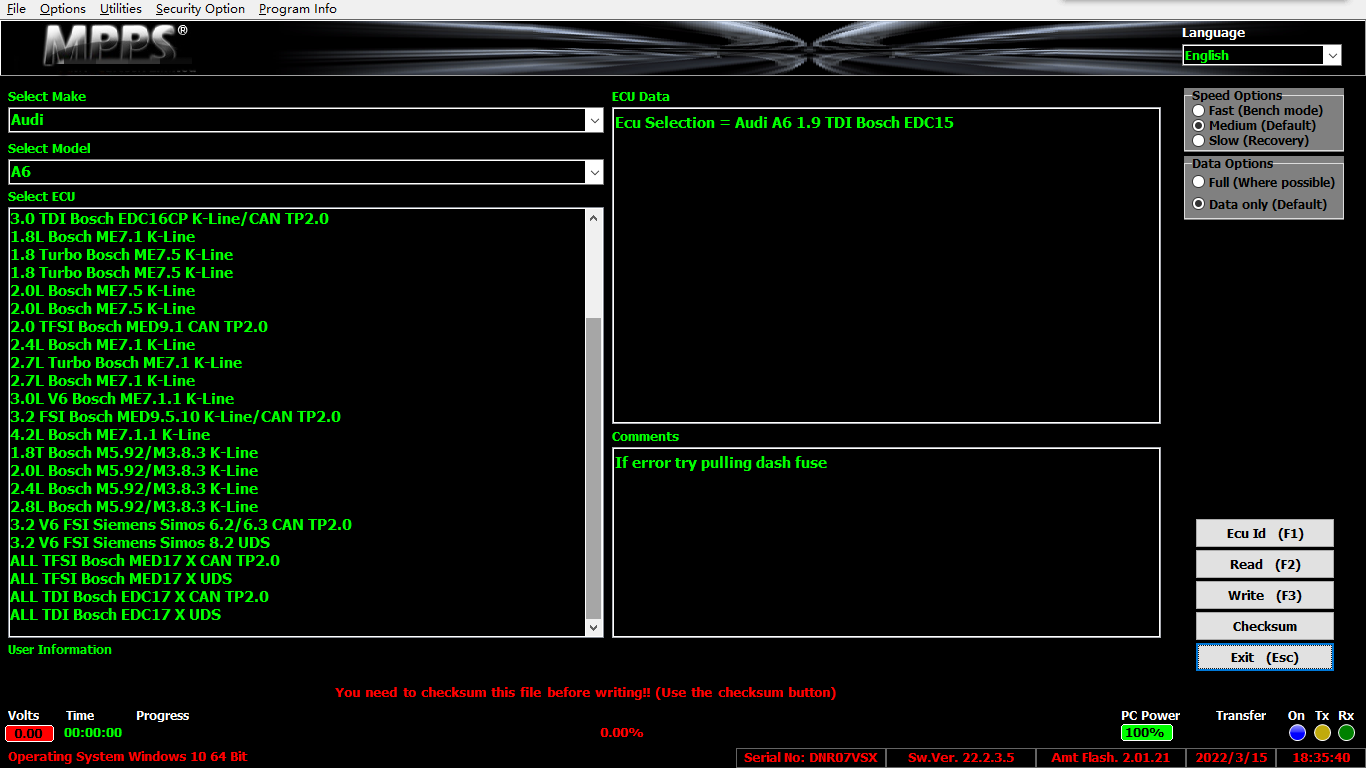

Screenshot #1 - MPPS v22 + v18 Master (без ограничений)
1
Screenshot #2 - MPPS v22 + v18 Master (без ограничений)
2
Screenshot #3 - MPPS v22 + v18 Master (без ограничений)
3
Screenshot #4 - MPPS v22 + v18 Master (без ограничений)
4
Screenshot #5 - MPPS v22 + v18 Master (без ограничений)
5

MPPS v22 + v18 Master (без ограничений)

MPPS V22 — мощный и весьма удобный инструмент программирования ЭБУ. Основные функции: чтение/запись/контрольная сумма, также включает в себя некоторые дополнительные функции:

- функции восстановления. В некоторых случаях MPPS может восстанавливать ЭБУ, с которыми другие инструменты даже не могут установить связь. На некоторых контроллерах он работает даже при отсутствии программы (пустая память).
- выбираемое полное/частичное чтение и запись, когда ЭБУ разрешает эту функцию.
- выбираемая скорость чтения/записи.
- запись функции «только изменения» для более быстрого программирования (при поддержке ЭБУ).
- автоматическое обнаружение K-Line/CAN, а также возможность обойти и принудительно использовать предпочитаемые средства связи.
- временный обход иммобилайзера для возможности прошивки на стенде в системах ME7.
- поддержка режима загрузки для ЭБУ с процессорами C167 и ST10.
- включены функции чтения/записи EEprom для некоторых ЭБУ.

Что нового в версии MPPS V22:
- добавлены новые FRF расшифровки в Tricore Boot.
- добавлены PSA ME7.4.5 K-line/CAN и специальный режим.
- добавлены Opel Vauxhall ME9.6.
- добавлены Renault Delphi DCM 1.2 Can.
- добавлены VAG Simos 6.2/6.3.
- исправлена проблема с Delphi E87 контрольная сумма.
- добавлен новый antituning поиск  - EDC17.
- добавлен (M)EDC17 Slave ЭБУ в том числе TP2 и UDS.
- добавлена поддержка VAG EDC17 (iDiag.by смотрите лист совместимости).
- различные исправления и исправления.

Добавлено чтение/запись Flash и EEprom без использования программатора:
 - Fiat 6F3-полный чтения/записи микро, Flash и EEprom над k-линией и высшему разряду.
 - Fiat 6JF-полный чтения/записи микро и EEprom над k-линией.
 - Fiat 8DF-полный чтения/записи микро и EEprom над k-линией.
 - Fiat 8F2-полный чтения/записи микро и EEprom над k-линией и может.
 - Fiat 8F3-полный чтения/записи микро и EEprom над k-линией и может.
 - Fiat 8GM-полный чтения/записи микро и EEprom более высшему разряду.
 - Fiat 8GS-полный чтения/записи микро и EEprom более высшему разряду.
 - Fiat 5SF3-полный чтения/записи Flash и EEprom сверх может.
 - Fiat 5SF3-полный чтения/записи EEprom над k-линией.
 - Fiat 5SF8-полный чтения/записи Flash и EEprom над k-линией и может.
 - Fiat 5SF9-полный чтения/записи Flash и EEprom сверх может.
 - Fiat ME7.9.10-полный чтения/записи микро сверх может.
 - Fiat ME7.6.3-полный чтения/записи микро сверх может.
 - Opel 6O2-полный чтения/записи микро, iDiag.by Flash и EEprom над k-линией и высшему разряду.
 - Opel 6O3-полный чтения/записи микро, Flash и EEprom над k-линией и высшему разряду.
 - Opel 6JO-полный чтения/записи микро и EEprom над k-линией.

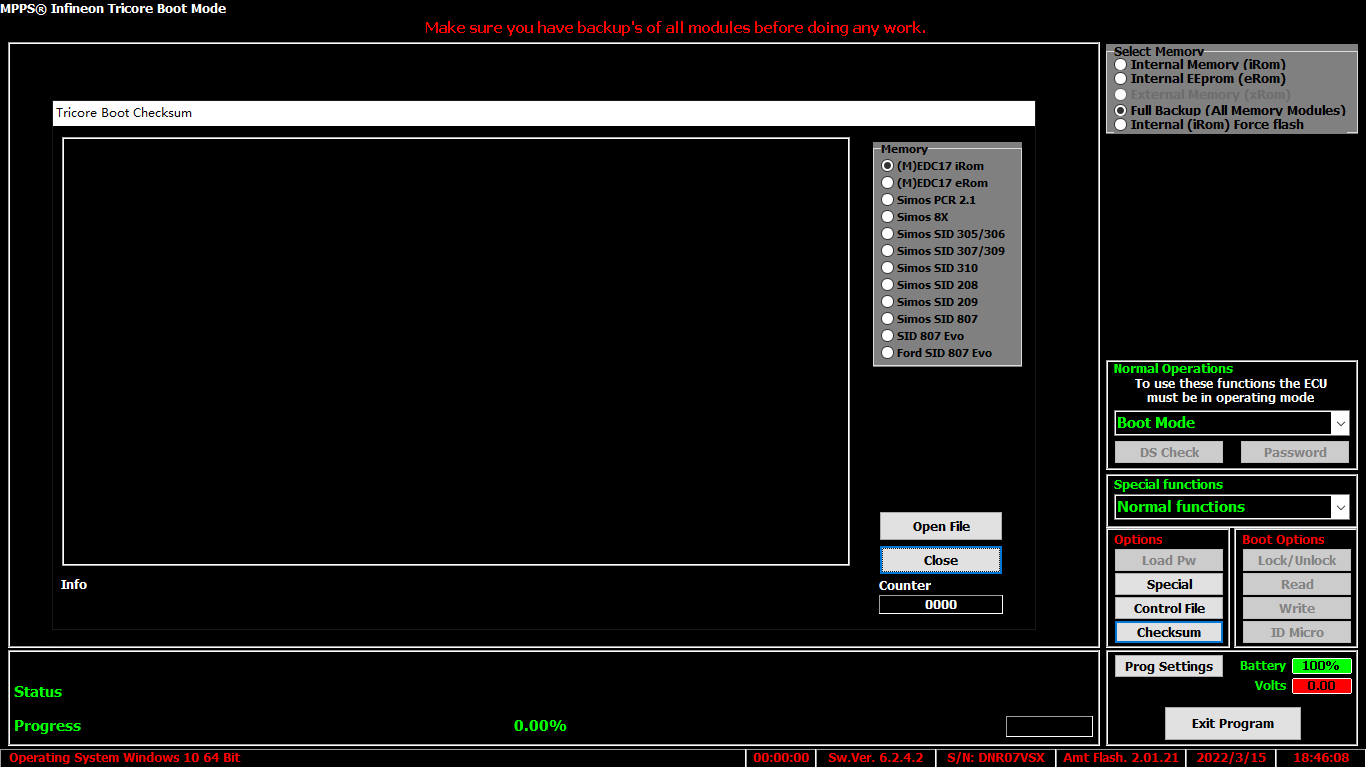

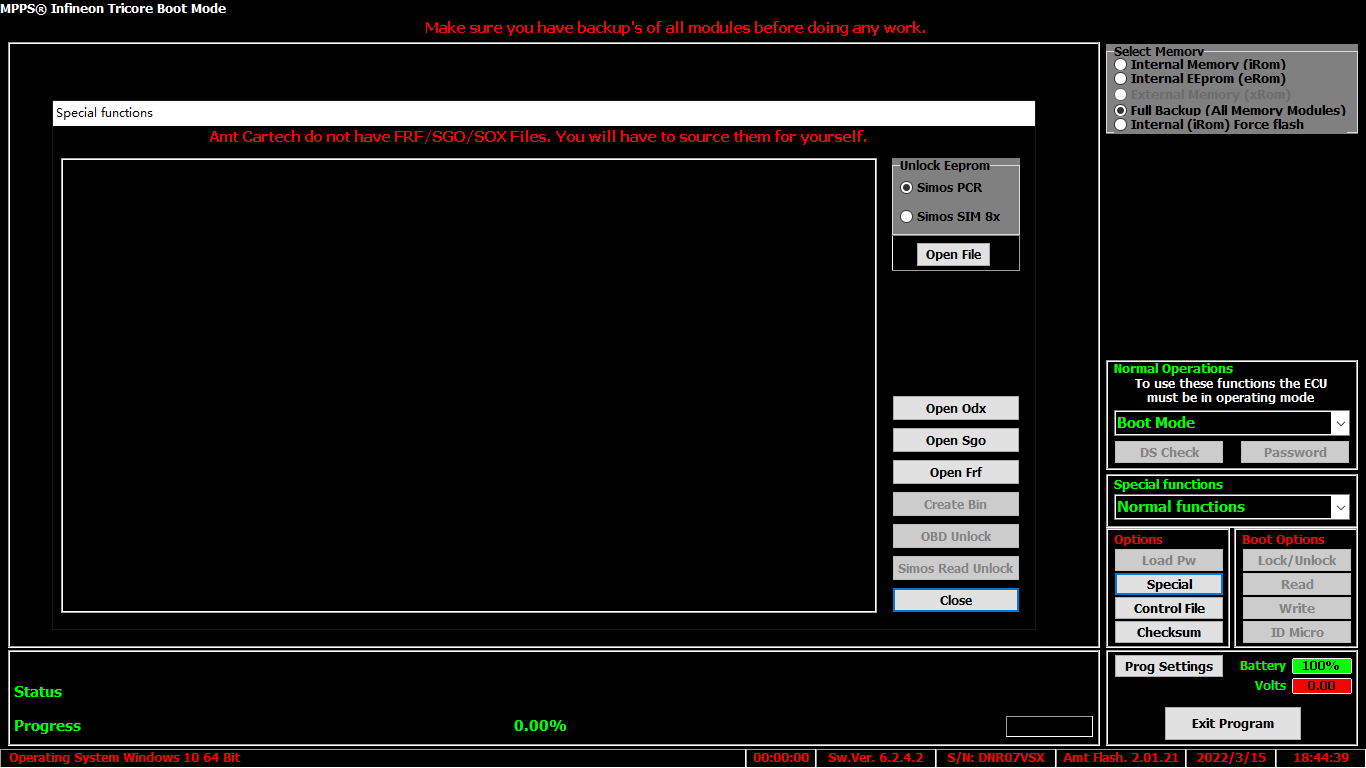

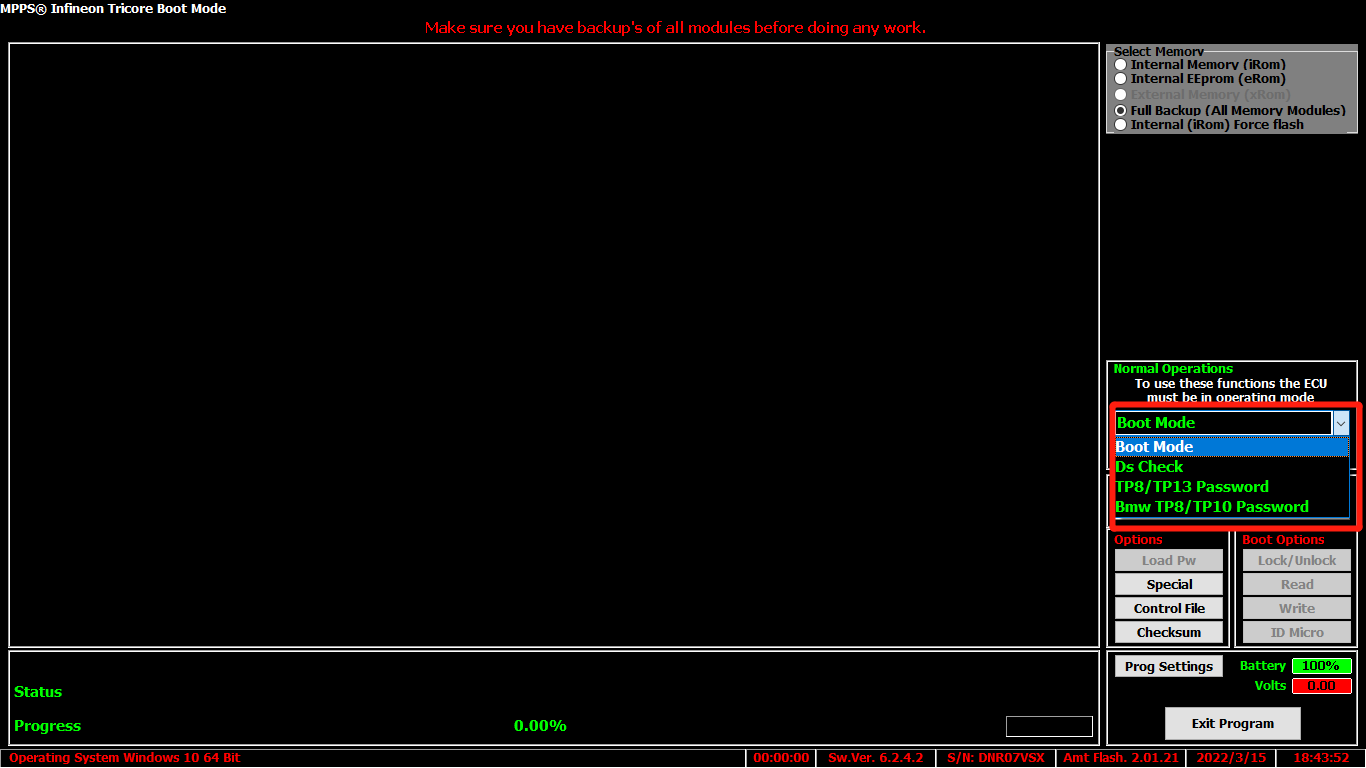

Tricore Boot + модуль разблокировки OBD:
- Функция проверки TPROT / DS для проверки активности TPROT без вскрытия ECU.
- Автоматически определяет ECU и тип процессора. Не нужно выбирать из списка, все происходит автоматически!
- Чтение/запись всей памяти Eeprom, Irom, Xrom (где это возможно)
- Функция патча для прошивки OBD ЭБУ TPROT в режиме загрузки (на данный момент поддерживает только VAG)
- Поддержка разблокировки VAG Simos PCR и Simos 8 с внешним eeprom.
- Исправление контрольной суммы поддерживается для Bosch MEDC17 irom и eeprom.
- Исправление контрольной суммы поддерживается для Simos PCR, Simos 8 и SID208, iDiag.by SID209, SID305, SID807 irom
- NEW! Поддержка режима обслуживания Bosch для чтения пароля на ЭБУ с использованием TP12+
- NEW! Специальная файловая утилита для создания файлов разблокировки OBD из контейнеров VAS FRF/SGO (флеш-контейнеры не предоставляются!). Эта функция позволит вам работать полностью от OBD на заблокированных ЭБУ!

0 0 0

Comments

0

Features

MakeModelEngineEcuMakeEcuTypeConnectionReadWriteAuto Checksum
Alfa Romeo1451.4 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1451.6 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1451.8 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1452.0 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1451.9 JTDBoschEDC15C5K-LineYesYes

Checksum Button

Alfa Romeo1461.4 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1461.6 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1461.8 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1462.0 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1461.9 JTDBoschEDC15C5K-LineYesYes

Checksum Button

Alfa Romeo1471.6 TSBoschME7.3.1K-LineYesYesYes
Alfa Romeo1471.8 TSBoschME7.3.1K-LineYesYesYes
Alfa Romeo1472.0 TSBoschME7.3.1K-LineYesYesYes
Alfa Romeo1473.2 24vBoschME7.3.1K-LineYesYesYes
Alfa Romeo1471.9 JTDBoschEDC15C7K-LineYesYes

Checksum Button

Alfa Romeo1471.9 JTD 8VBoschEDC16C8K-LineYesYesYes
Alfa Romeo1471.9 JTD 16VBoschEDC16C9K-LineYesYesYes
Alfa Romeo1561.6 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1561.8 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1562.0 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1561.6 TSBoschME7.3.1K-LineYesYesYes
Alfa Romeo1561.8 TSBoschME7.3.1K-LineYesYesYes
Alfa Romeo1562.0 TSBoschME7.3.1K-LineYesYesYes
Alfa Romeo1563.2 24vBoschME7.3.1K-LineYesYesYes
Alfa Romeo1561.9 JTDBoschEDC15C7K-LineYesYes

Checksum Button

Alfa Romeo1562.4 JTDBoschEDC15C7K-LineYesYes

Checksum Button

Alfa Romeo1561.9 JTD 16VBoschEDC16C8K-LineYesYesYes
Alfa Romeo1562.4 JTD 20VBoschEDC16C8K-LineYesYesYes
Alfa Romeo1562.5 V6BoschME2.1K-LineNoYes

Checksum Button

Alfa Romeo1562.5 V6BoschME3.1K-LineYesYesYes
Alfa Romeo1591.9 JTD 8VBoschEDC16C8K-LineYesYesYes
Alfa Romeo1591.9 JTD 16VBoschEDC16C9K-LineYesYesYes
Alfa Romeo1592.2 JTS 16VBoschMED7.6.1KLineNoYesYes
Alfa Romeo1592.4 JTD 20VBoschEDC16C9K-LineYesYesYes
Alfa Romeo1662.0 TSBoschM1.5.5K-LineNoYesYes
Alfa Romeo1662.0 TSBoschME7.3.1K-LineYesYesYes
Alfa Romeo1662.4 JTDBoschEDC15C7K-LineNoYesYes
Alfa Romeo1662.4 JTD 20VBoschEDC16C8K-LineYesYesYes
Alfa Romeo1662.5 V6BoschME2.1K-LineNoYes

Checksum Button

Alfa Romeo1663.0 V6BoschME2.1K-LineNoYes

Checksum Button

Alfa Romeo1662.5 V6BoschME3.1K-LineYesYesYes
Alfa Romeo1663.0 V6BoschME3.1K-LineYesYesYes
Alfa Romeo1663.2 V6BoschME7.3.1K-LineYesYesYes
Alfa RomeoBrera1.9 JTD 16VBoschEDC16C9K-LineYesYesYes
Alfa RomeoBrera2.2 JTS 16VBoschMED7.6.1KLineNoYesYes
Alfa RomeoBrera2.4 JTD 20VBoschEDC16C39K-LineYesYesYes
Alfa RomeoCrosswagon Q41.9 JTDBoschEDC15C7K-LineYesYes

Checksum Button

Alfa RomeoCrosswagon Q41.9 JTD 16VBoschEDC16C39K-LineYesYesYes
Alfa RomeoGulietta1.4 MultiAirMarelliMM8GACANYesYesYes
Alfa RomeoGulietta1.4 16vBoschME7.9.10CANYesYesYes
Alfa RomeoGulietta1.4 16v TBoschME7.9.10CANYesYesYes
Alfa RomeoGulietta1.6 JTDM 16vBoschEDC16C39-5.5CANYesYesYes
Alfa RomeoGulietta2.0 JTDM 16vBoschEDC16C39-5.5CANYesYesYes
Alfa RomeoGT3.2 24vBoschME7.3.1K-LineYesYesYes
Alfa RomeoGT1.9 JTD 16VBoschEDC16C8K-LineYesYesYes
Alfa RomeoGTV1.8 TSBoschM1.5.5K-LineNoYesYes
Alfa RomeoGTV2.0 TSBoschM1.5.5K-LineNoYesYes
Alfa RomeoGTV3.0 TSBoschM1.5.5K-LineNoYesYes
Alfa RomeoGTV2.0 TSBoschME7.3.1K-LineYesYesYes
Alfa RomeoGTV3.2 V6BoschME7.3.1K-LineYesYesYes
Alfa RomeoGTV3.0 V6 24VBoschME3.1K-LineYesYesYes
Alfa RomeoGTV3.0 V6BoschME2.1K-LineNoYes

Checksum Button

Alfa RomeoMito1.3 JTDMMarelliMultijet 6SFCANYesYesYes
Alfa RomeoMito1.4 16vBoschME7.9.10CANYesYesYes
Alfa RomeoMito1.4 16v TBoschME7.9.10CANYesYesYes
Alfa RomeoMito1.4 16vBoschME7.9.10KLineYesYesYes
Alfa RomeoMito1.4 16v TBoschME7.9.10KLineYesYesYes
Alfa RomeoMito1.6 JTDM 16vBoschEDC16C39-5.5CANYesYesYes
Alfa RomeoMito1.4 MultiAirMarelliMM8GACANYesYesYes
Alfa RomeoMito1.3 JTDMMarelliMJD8F2/3CANYesYesYes
Alfa RomeoSpider1.8 TSBoschM1.5.5K-LineNoYesYes
Alfa RomeoSpider1.8 TSBoschME7.3.1K-LineYesYesYes
Alfa RomeoSpider2.0 TSBoschM1.5.5K-LineNoYesYes
Alfa RomeoSpider2.0 TSBoschME7.3.1K-LineYesYesYes
Alfa RomeoSpider3.2 V6BoschME7.3.1K-LineYesYesYes
Alfa RomeoSpider3.0 V6 24VBoschME3.1K-LineYesYesYes
Alfa RomeoSportwagon2.0 TSBoschME7.3.1K-LineYesYes

Checksum Button

Alfa RomeoSportwagon1.9 JTDBoschEDC15C7K-LineYesYes

Checksum Button

Alfa RomeoSportwagon1.9 JTD 16VBoschEDC16C8K-LineYesYesYes
AudiA11.2 TDIDelphiDCM 3.7CANYesYesYes
AudiA11.6 TDISiemensSimos Pcr2.xUDSYesYesYes
AudiA21.2 TDI_34BoschEDC15K-LineYesYes

Checksum Button

AudiA21.4 TDI_PDBoschEDC15K-LineYesYes

Checksum Button

AudiA31.4 TSIBoschMED17.5.5CAN CAN TP2.0YesYesYes
AudiA31.6 TDISiemensSimos Pcr2.xUDSYesYesYes
AudiA31.9 TDIBoschEDC15K-LineYesYes

Checksum Button

AudiA31.9 TDIBoschEDC16U1K-Line/CAN CAN TP2.0YesYesYes
AudiA31.9 TDIBoschEDC16U34K-Line/CAN CAN TP2.0YesYesYes
AudiA32.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
AudiA32.0 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
AudiA32.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
AudiA31.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
AudiA31.8LBoschME7.1K-LineYesYesYes
AudiA31.8 TurboBoschME7.5K-LineYesYesYes
AudiA31.8 TurboBoschME7.5K-LineYesYesYes
AudiA32.0 FSIBoschMED9.5.10K-Line/TP2.0YesYesYes
AudiA32.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
AudiA31.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA31.8 NABoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA32.0 TDISiemensPPD 1.XK-Line/CAN TP2.0YesYesYes
AudiA33.2LBoschME7.1.1K-LineYesYesYes
AudiA33.2LBoschME7.1.1CAN TP2.0YesYesYes
AudiA3ALL TFSIBoschMED17 XCAN TP2.0YesYesYes
AudiA3ALL TFSIBoschMED17 XUDSYesYesYes
AudiA3ALL TDIBoschEDC17 XCAN TP2.0YesYesYes
AudiA3ALL TDIBoschEDC17 XUDSYesYesYes
AudiA41.9 TDIBoschEDC15K-LineYesYes

Checksum Button

AudiA42.5 TDIBoschEDC15K-LineYesYes

Checksum Button

AudiA41.9 TDIBoschEDC16U1K-Line/TCAN TP2.0YesYesYes
AudiA41.9 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
AudiA41.9 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
AudiA42.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
AudiA42.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
AudiA42.0 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
AudiA42.7 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
AudiA43.0 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
AudiA41.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
AudiA41.8LBoschME7.1K-LineYesYesYes
AudiA41.8 TurboBoschME7.5K-LineYesYesYes
AudiA41.8 TurboBoschME7.5K-LineYesYesYes
AudiA42.0LBoschME7.1.1K-LineYesYesYes
AudiA42.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
AudiA42.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
AudiA42.4LBoschME7.1K-LineYesYesYes
AudiA42.8L 30vBoschME7.1.1K-LineYesYesYes
AudiA43.0L V6BoschME7.1.1K-LineYesYesYes
AudiA41.8LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA41.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA42.4LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA42.8LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA42.0 TDISiemensPPD 1.XK-Line/CAN TP2.0YesYesYes
AudiA43.2 V6 FSISiemensSimos 6.2/6.3CAN TP2.0YesYesYes
AudiA43.2 V6 FSISiemensSimos 8.2UDSYesYesYes
AudiA4ALL TFSIBoschMED17 XCAN TP2.0YesYesYes
AudiA4ALL TFSIBoschMED17 XUDSYesYesYes
AudiA4ALL TDIBoschEDC17 XCAN TP2.0YesYesYes
AudiA4ALL TDIBoschEDC17 XUDSYesYesYes
AudiA52.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
AudiA52.7 TDIBoschEDC16CPK-Line/TP20YesYesYes
AudiA53.0 TDIBoschEDC16CPK-Line/TP20YesYesYes
AudiA54.2 FSIBoschMED9.1CAN TP2.0YesYesYes
AudiA53.2 V6 FSISiemensSimos 8.2UDSYesYesYes
AudiA5ALL TFSIBoschMED17 XCAN TP2.0YesYesYes
AudiA5ALL TFSIBoschMED17 XUDSYesYesYes
AudiA5ALL TDIBoschEDC17 XCAN TP2.0YesYesYes
AudiA5ALL TDIBoschEDC17 XUDSYesYesYes
AudiA61.9 TDIBoschEDC15K-LineYesYes

Checksum Button

AudiA62.5 TDIBoschEDC15K-LineYesYes

Checksum Button

AudiA61.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
AudiA62.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
AudiA62.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
AudiA62.0 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
AudiA62.7 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
AudiA63.0 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
AudiA61.8LBoschME7.1K-LineYesYesYes
AudiA61.8 TurboBoschME7.5K-LineYesYesYes
AudiA61.8 TurboBoschME7.5K-LineYesYesYes
AudiA62.0LBoschME7.5K-LineYesYesYes
AudiA62.0LBoschME7.5K-LineYesYesYes
AudiA62.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
AudiA62.4LBoschME7.1K-LineYesYesYes
AudiA62.7L TurboBoschME7.1K-LineYesYesYes
AudiA62.7LBoschME7.1K-LineYesYesYes
AudiA63.0L V6BoschME7.1.1K-LineYesYesYes
AudiA63.2 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
AudiA64.2LBoschME7.1.1K-LineYesYesYes
AudiA61.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA62.0LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA62.4LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA62.8LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA63.2 V6 FSISiemensSimos 6.2/6.3CAN TP2.0YesYesYes
AudiA63.2 V6 FSISiemensSimos 8.2UDSYesYesYes
AudiA6ALL TFSIBoschMED17 XCAN TP2.0YesYesYes
AudiA6ALL TFSIBoschMED17 XUDSYesYesYes
AudiA6ALL TDIBoschEDC17 XCAN TP2.0YesYesYes
AudiA6ALL TDIBoschEDC17 XUDSYesYesYes
AudiA7ALL TFSIBoschMED17 XCAN TP2.0YesYesYes
AudiA7ALL TFSIBoschMED17 XUDSYesYesYes
AudiA7ALL TDIBoschEDC17 XCAN TP2.0YesYesYes
AudiA7ALL TDIBoschEDC17 XUDSYesYesYes
AudiA73.2 FSISiemensSimos 8.2UDSYesYesYes
AudiA73.0 TFSISiemensSimos 8.4UDSYesYesYes
AudiA82.5 TDIBoschEDC15K-LineYesYes

Checksum Button

AudiA83.0 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
AudiA84.0 TDIBoschEDC16C4K-Line ECU 1YesYesYes
AudiA84.0 TDIBoschEDC16C4K-Line ECU 2YesYesYes
AudiA84.0 TDIBoschEDC16C34K-Line/TP20 ECU 1YesYesYes
AudiA84.0 TDIBoschEDC16C34K-Line/TP2.0 ECU 2YesYesYes
AudiA84.2 TDIBoschEDC16C34K-Line/TP20 ECU 1YesYesYes
AudiA84.2 TDIBoschEDC16C34K-Line/TP2.0 ECU 2YesYesYes
AudiA83.2 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
AudiA83.2 V6 FSISiemensSimos 6.2/6.3CAN TP2.0YesYesYes
AudiA83.7LBoschME7.1.1K-LineYesYesYes
AudiA84.2LBoschME7.1.1K-LineYesYesYes
AudiA84.2LBoschME7.1K-LineYesYesYes
AudiA84.2LBoschME7.1K-LineYesYesYes
AudiA85.2L V10 FSIBoschMED9.1.2TP2.0 ECU 1YesYesYes
AudiA85.2L V10 FSIBoschMED9.1.2TP2.0 ECU 2YesYesYes
AudiA84.2LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

AudiA8ALL TFSIBoschMED17 XCAN TP2.0 ECU 1YesYesYes
AudiA8ALL TFSIBoschMED17 XCAN TP2.0 ECU 2YesYesYes
AudiA8ALL TFSIBoschMED17 XUDS ECU 1YesYesYes
AudiA8ALL TFSIBoschMED17 XUDS ECU 2YesYesYes
AudiA8ALL TDIBoschEDC17 XCAN TP2.0 ECU 1YesYesYes
AudiA8ALL TDIBoschEDC17 XCAN TP2.0 ECU 2YesYesYes
AudiA8ALL TDIBoschEDC17 XUDS ECU 1YesYesYes
AudiA8ALL TDIBoschEDC17 XUDS ECU 2YesYesYes
AudiAllRoad2.5 TDIBoschEDC15K-LineYesYes

Checksum Button

AudiAllRoad2.7L TurboBoschME7.1K-LineYesYesYes
AudiAllRoad2.7L TurboBoschME7.1.1K-LineYesYesYes
AudiAllRoad4.2LBoschME7.1.1K-LineYesYesYes
AudiAllRoad2.7 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
AudiQ3ALL TDIBoschEDC17CP14CAN TP2.0YesYesYes
AudiQ3ALL TDIBoschEDC17CP04UDSYesYesYes
AudiQ3ALL TFSIBoschMED17 XCAN TP2.0YesYesYes
AudiQ3ALL TFSIBoschMED17 XUDSYesYesYes
AudiQ5ALL TDIBoschEDC17CP14CAN TP2.0YesYesYes
AudiQ5ALL TDIBoschEDC17CP04UDSYesYesYes
AudiQ5ALL TFSIBoschMED17 XCAN TP2.0YesYesYes
AudiQ5ALL TFSIBoschMED17 XUDSYesYesYes
AudiQ73.0 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
AudiQ73.0 V6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
AudiQ73.2 V6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
AudiQ74.2 TDIBoschEDC16C34K-Line/CAN TP2.0YesYesYes
AudiQ74.2 TDIBoschEDC16C34K-Line/CAN TP2.0YesYesYes
AudiQ7ALL TFSIBoschMED17 XCAN TP2.0 ECU 1YesYesYes
AudiQ7ALL TFSIBoschMED17 XCAN TP2.0 ECU 2YesYesYes
AudiQ7ALL TFSIBoschMED17 XUDS ECU 1YesYesYes
AudiQ7ALL TFSIBoschMED17 XUDS ECU 2YesYesYes
AudiQ7ALL TDIBoschEDC17 XCAN TP2.0 ECU 1YesYesYes
AudiQ7ALL TDIBoschEDC17 XCAN TP2.0 ECU 2YesYesYes
AudiQ7ALL TDIBoschEDC17 XUDS ECU 1YesYesYes
AudiQ7ALL TDIBoschEDC17 XUDS ECU 2YesYesYes
AudiR84.2L V8 FSIBoschMED9.1TP2.0 ECU 1YesYesYes
AudiR84.2L V8 FSIBoschMED9.1TP2.0 ECU 2YesYesYes
AudiR85.2L V10 FSIBoschMED9.1TP2.0 ECU 1YesYesYes
AudiR85.2L V10 FSIBoschMED9.1TP2.0 ECU 2YesYesYes
AudiRS42.7 TurboBoschME7.1 Version 1K-LineYesYesYes
AudiRS42.7 TurboBoschME7.1 Version 2K-LineYesYesYes
AudiRS44.2L V8 FSIBoschMED9.1TP2.0 ECU 1YesYesYes
AudiRS44.2L V8 FSIBoschMED9.1TP2.0 ECU 2YesYesYes
AudiRS64.2T QuattroBoschME7.1.1K-LineYesYesYes
AudiRS65.0L V10 TFSIBoschMED9.1.2TP2.0 ECU 1YesYesYes
AudiRS65.0L V10 TFSIBoschMED9.1.2TP2.0 ECU 2YesYesYes
AudiS31.8 TurboBoschME7.5K-LineYesYesYes
AudiS32.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
AudiS42.7 TurboBoschME7.1K-LineYesYesYes
AudiS43.0 TFSISiemensSimos 8.4UDSYesYesYes
AudiS44.2LBoschME7.1.1K-LineYesYesYes
AudiS44.2L V8 FSIBoschMED9.1.3TP2.0 ECU 1YesYesYes
AudiS44.2L V8 FSIBoschMED9.1.3TP2.0 ECU 2YesYesYes
AudiS53.0 TFSISiemensSimos 8.4UDSYesYesYes
AudiS54.2L V8 FSIBoschMED9.1.1TP2.0YesYesYes
AudiS54.2L V8 FSIBoschMED9.1.3TP2.0 ECU 1YesYesYes
AudiS54.2L V8 FSIBoschMED9.1.3TP2.0 ECU 2YesYesYes
AudiS64.2LBoschME7.1.1K-LineYesYesYes
AudiS65.2L V10 FSIBoschMED9.1TP2.0 ECU 1YesYesYes
AudiS65.2L V10 FSIBoschMED9.1TP2.0 ECU 2YesYesYes
AudiS84.2LBoschME7.1.1K-LineYesYesYes
AudiS85.2L V10 FSIBoschMED9.1.2TP2.0 ECU 1YesYesYes
AudiS85.2L V10 FSIBoschMED9.1.2TP2.0 ECU 2YesYesYes
AudiTT1.8 TurboBoschME7.5K-LineYesYesYes
AudiTT3.2LBoschME7.1.1K-LineYesYesYes
AudiTT3.2LBoschME7.1.1CAN TP2.0YesYesYes
AudiTT2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
AudiTT2.5 TFSIBoschMED9.1.2CAN TP2.0YesYesYes
BentleyArnage T6800cc V8 Twin TurboBoschME7.1.1 Master EcuK-LineYesYesYes
BentleyArnage T6800cc V8 Twin TurboBoschME7.1.1 Slave EcuK-LineYesYesYes
BentleyArnage T6800cc V8 Twin TurboBoschME7.1.1 Master EcuCAN TP2.0YesYesYes
BentleyArnage T6800cc V8 Twin TurboBoschME7.1.1 Slave EcuCAN TP2.0YesYesYes
BentleyContinental Flying Spur6000cc W12 Twin TurboBoschME7.1.1 Master EcuK-LineYesYesYes
BentleyContinental Flying Spur6000cc W12 Twin TurboBoschME7.1.1 Slave EcuK-LineYesYesYes
BentleyContinental Flying Spur6000cc W12 Twin TurboBoschME7.1.1 Master EcuCAN TP2.0YesYesYes
BentleyContinental Flying Spur6000cc W12 Twin TurboBoschME7.1.1 Slave EcuCAN TP2.0YesYesYes
BentleyContinental GT6000cc W12 Twin TurboBoschME7.1.1 Master EcuK-LineYesYesYes
BentleyContinental GT6000cc W12 Twin TurboBoschME7.1.1 Slave EcuK-LineYesYesYes
BentleyContinental GT6000cc W12 Twin TurboBoschME7.1.1 Master EcuCAN TP2.0YesYesYes
BentleyContinental GT6000cc W12 Twin TurboBoschME7.1.1 Slave EcuCAN TP2.0YesYesYes
BentleyContinental GTC6000cc W12 Twin TurboBoschME7.1.1 Master EcuK-LineYesYesYes
BentleyContinental GTC6000cc W12 Twin TurboBoschME7.1.1 Slave EcuK-LineYesYesYes
BentleyContinental GTC6000cc W12 Twin TurboBoschME7.1.1 Master EcuCAN TP2.0YesYesYes
BentleyContinental GTC6000cc W12 Twin TurboBoschME7.1.1 Slave EcuCAN TP2.0YesYesYes
BmwSeries 1118 1.8DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 1120 2.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 31.9LBoschM5.2K-LineNoNo

Checksum Button

BmwSeries 31.9LBoschM5.2.1K-LineNoNo

Checksum Button

BmwSeries 32.0LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 32.0LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 32.0LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries 32.3LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 32.3LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 32.5LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 32.5LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 32.5LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries 32.8LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 32.8LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 33.0LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries 33.2 EvoSiemensMSS50K-LineNoNo

Checksum Button

BmwSeries 33.2 E46SiemensMSS54K-LineNoNo

Checksum Button

BmwSeries 3318 1.8DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 3320 2.0DBoschDDE3.0K-LineNoNo

Checksum Button

BmwSeries 3320 2.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries 3320 2.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 3325 2.5DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 3330 3.0DBoschDDE4.0K-LineYesYesYes
BmwSeries 3330 2.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries 3330 3.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 3335 3.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 52.0LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 52.0LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 52.0LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 52.3LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 52.2LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 52.3LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 52.5LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 52.5LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries 52.8LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 52.8LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 53.0LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries 53.8L V8BoschM5.2K-LineNoNo

Checksum Button

BmwSeries 53.8L V8BoschM5.2.1K-LineNoNo

Checksum Button

BmwSeries 54.0-4.4 V8BoschM5.2K-LineNoNo

Checksum Button

BmwSeries 54.0-4.4 V8BoschM5.2.1K-LineNoNo

Checksum Button

BmwSeries 55.0L V8 M5SiemensMSS52K-LineNoNo

Checksum Button

BmwSeries 52.0DBoschDDE3.0K-LineNoNo

Checksum Button

BmwSeries 5520 2.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries 5520 2.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 5525 2.5DBoschDDE4.0K-LineYesYesYes
BmwSeries 5525 2.5DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries 5525 2.5DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 5530 3.0DBoschDDE4.0K-LineYesYesYes
BmwSeries 5530 3.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries 5530 3.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 5530 3.0DBoschEDC16C35K-Line_Fast/CANYesYesYes
BmwSeries 5535 3.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries 5535 3.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 54.4-4.6L V8BoschME7.2K-LineYesYes

Checksum Button

BmwSeries 63.0LSiemensMSS52K-LineNoNo

Checksum Button

BmwSeries 64.4LSiemensMSS52K-LineNoNo

Checksum Button

BmwSeries 6635 3.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 72.8LSiemensMS41K-LineNoNo

Checksum Button

BmwSeries 72.8LSiemensMS42K-LineNoNo

Checksum Button

BmwSeries 73.8L V8BoschM5.2K-LineNoNo

Checksum Button

BmwSeries 73.8L V8BoschM5.2.1K-LineNoNo

Checksum Button

BmwSeries 74.0-4.4 V8BoschM5.2K-LineNoNo

Checksum Button

BmwSeries 74.0-4.4 V8BoschM5.2.1K-LineNoNo

Checksum Button

BmwSeries 7730 3.0DBoschDDE4.0K-LineYesYesYes
BmwSeries 7730 3.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries 7730 3.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries 74.4-4.6L V8BoschME7.2K-LineYesYes

Checksum Button

BmwSeries X32.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries X32.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries X53.0LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries X53.0DBoschDDE4.0K-LineYesYesYes
BmwSeries X54.4L-4.6LBoschME7.2K-LineYesYes

Checksum Button

BmwSeries X53.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries X53.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries X63.0DBoschEDC16C31K-Line_SlowYesYesYes
BmwSeries X63.0DBoschEDC16C35K-Line_Slow/CANYesYesYes
BmwSeries ZZ3 1.9LBoschM5.2K-LineNoNo

Checksum Button

BmwSeries ZZ3 1.9LBoschM5.2.1K-LineNoNo

Checksum Button

BmwSeries ZZ3 2.0-2.8SiemensMS41K-LineNoNo

Checksum Button

BmwSeries ZZ3 2.0-2.8SiemensMS42K-LineNoNo

Checksum Button

BmwSeries ZZ3 2.2LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries ZZ3 3.0LSiemensMS43K-LineNoNo

Checksum Button

BmwSeries ZZ3 3.2 EvoSiemensMSS50K-LineNoNo

Checksum Button

BmwSeries ZZ3 3.2 E46SiemensMSS54K-LineNoNo

Checksum Button

BmwSeries ZZ8 5.0L V8SiemensMSS54K-LineNoNo

Checksum Button

ChevroletCaptiva1.9 16V TD MJBoschEDC16C39CANYesYesYes
ChevroletCaptiva2.0 16V VCDIBoschEDC16C39CANYesYesYes
ChevroletCruiz2.0 16V VCDIBoschEDC16C39CANYesYesYes
Chrysler300C3.0 CRDBoschEDC16CP31-8K-Line/CANYesYesYes
ChryslerPT Cruiser2.2L CRDBoschEDC15C2K-LineYesYes

Checksum Button

ChryslerPT Cruiser2.2L CRDBoschEDC16C2-9K-Line/CANYesYesYes
ChryslerSebring2.0 CRDBoschEDC16U31CANYesYesYes
ChryslerVoyager2.5L CRDBoschEDC15C2K-LineYesYes

Checksum Button

ChryslerVoyager2.8L CRDBoschEDC15C2K-LineYesYes

Checksum Button

ChryslerVoyager2.8L CRDBoschEDC16CP31K-Line/CANYesYesYes
CitroenBerlingo2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenBerlingo2.0 HDISiemensSID 801/801AK-LineYesYesYes
CitroenC21.6LBoschMP7.4.4K-LineYesYes

Checksum Button

CitroenC21.4 HDISiemensSID 804K-LineYesYesYes
CitroenC21.6 VTSBoschME7.4.5KLineYesYesYes
CitroenC21.6 VTSBoschME7.4.5CANYesYesYes
CitroenC31.4 HDIBoschEDC16C3K-LineYesYesYes
CitroenC31.4 16v HDIDelphiDDCRK-LineYesYes

Checksum Button

CitroenC31.6 HDIBoschEDC16C3K-LineYesYesYes
CitroenC31.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
CitroenC31.6LBoschMP7.4.4K-LineYesYes

Checksum Button

CitroenC31.4 HDISiemensSID 804K-LineYesYesYes
CitroenC31.4 HDISiemensSID 805/806CANYesYesYes
CitroenC41.6 HDIBoschEDC16C3K-LineYesYesYes
CitroenC41.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
CitroenC41.6LBoschMP7.4.4K-LineYesYes

Checksum Button

CitroenC42.0 TDSiemensSID803AK-Line/CANYesYesYes
CitroenC42.0 HDI 136HPDelphiDCM 3.4CANYesYesYes
CitroenC52.0L 16vMarelli6LPAK-LineYesYes

Checksum Button

CitroenC52.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenC52.2 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenC52.0 HDISiemensSID 804K-LineYesYesYes
CitroenC52.0 HDIDelphiDCM 3.5CANYesYesYes
CitroenC52.0 TDSiemensSID803AK-Line/CANYesYesYes
CitroenC52.0 TDSiemensSID803K-LineYesYesYes
CitroenC52.0 HDI 136HPDelphiDCM 3.4CANYesYesYes
CitroenC52.0 HDIBoschEDC16C39CANYesYesYes
CitroenC62.0L 16vMarelli6LPAK-LineYesYes

Checksum Button

CitroenC82.0L 16vMarelli6LPAK-LineYesYes

Checksum Button

CitroenC82.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenDS42.0 HDIDelphiDCM 3.5CANYesYesYes
CitroenDS52.0 HDIDelphiDCM 3.5CANYesYesYes
CitroenEvasion2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenJumper2.0 HDIBoschEDC15CK-LineYesYes

Checksum Button

CitroenJumper2.2 HDIBoschEDC15CK-LineYesYes

Checksum Button

CitroenJumper2.8 HDIBoschEDC15CK-LineYesYes

Checksum Button

CitroenJumpy2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenJumpy2.0 TDSiemensSID803AK-Line/CANYesYesYes
CitroenPicasso1.6 HDIBoschEDC16C3K-LineYesYesYes
CitroenPicasso1.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
CitroenPicasso2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenPicasso2.0 HDISiemensSID 801/801AK-LineYesYesYes
CitroenSaxo1.6 VTRBoschMP7.4.4K-LineYesYes

Checksum Button

CitroenSaxo1.4 HDISiemensSID 804K-LineYesYesYes
CitroenXantia2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenXantia2.0 HDISiemensSID 801/801AK-LineYesYesYes
CitroenXsara2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

CitroenXsara2.0 HDISiemensSID 801/801AK-LineYesYesYes
CitroenXsara1.6 16vBoschME7.4.5KLineYesYesYes
CitroenXsara1.6 16vBoschME7.4.5CANYesYesYes
DodgeAvenger2.0 16V CRDBoschEDC16U31CANYesYesYes
DodgeCaliber2.0 16V CRDBoschEDC16U31CANYesYesYes
DodgeJourney2.0 16V CRDBoschEDC16U31CANYesYesYes
DucatiHypermotard1100Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiHypermotard1100 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonster1100Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonster1100 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonster400Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonster620Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonster620 DarkMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonster695Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonsterS2RMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonsterS2R 1000Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonsterS2R 800Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonsterS2R DarkMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonsterS4RMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonsterS4R TSMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMonsterS4R S TSMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMultistrada1100 DSMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMultistrada1100 S DSMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMultistrada1100Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMultistrada1100 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiMultistrada620Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiMultistrada620 DarkMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSportclassicGT 1100Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSportclassicSmart 1100 LEMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSportclassicSport 1100Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSportclassicSport 1100 BMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSportclassicSport 1100 MMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSportclassicSport 1100 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSportclassicSport 1100 TMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSporttouringST3Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSporttouringST3 S ABSMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSporttouringST4 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSporttouringST4 S ABSMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiStreetfighter1100Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiStreetfighter1100 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike1098Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike1098 RMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike1098 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike1198Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike1198 RMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike1198 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike749Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike749 DarkMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike749 RMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike749 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike848Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike848 DarkMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike999Marelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike999 RMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSuperbike999 SMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSupersport1100 DSMarelli59M/5AMK-LineYesYes

Checksum Button

DucatiSupersport1100 S DSMarelli59M/5AMK-LineYesYes

Checksum Button

Ferrari360 Modena360 ModenaBoschME7.3H4K-LineYesYes

Checksum Button

Fiat5000.9 JTMMarelliTwinAir MM8GSFCANYesYesYes
Fiat5000.9 JTMMarelliTwinAir MM8GSWCANYesYesYes
Fiat5001.2LMarelli5SF3.M1/M2CANYesYesYes
Fiat5001.2LMarelli5SF8/9CANYesYesYes
Fiat5001.2 16VMarelliIAW MM9CANYesYesYes
Fiat5001.3 JTDMMarelliMultijet 6F3CANYesYesYes
Fiat5001.3 JTDMMarelliMultijet MJD8DFCANYesYesYes
Fiat5001.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
Fiat5001.3 JTDMMarelliMultijet MJD9DFCANNoNoYes
Fiat5001.4TBoschME7.9.10CANYesYesYes
Fiat6001.1 E3MarelliIAW 59FK-LineNoNo

Checksum Button

FiatBrava1.2 12VBoschM1.5.5K-LineNoNoYes
FiatBrava1.6 16VMarelliIAW 49FK-LineNoNo

Checksum Button

FiatBrava1.6 16VMarelliIAW 4EFK-LineNoNo

Checksum Button

FiatBrava1.9 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatBravo1.2 12VBoschM1.5.5K-LineNoNoYes
FiatBravo1.4 16VBoschME7.9.10CANYesYesYes
FiatBravo1.4 16V TBoschME7.9.10CANYesYesYes
FiatBravo1.4 16VBoschME7.9.10KLineYesYesYes
FiatBravo1.4 16V TBoschME7.9.10KLineYesYesYes
FiatBravo1.6 16VMarelliIAW 49FK-LineNoNo

Checksum Button

FiatBravo1.6 16VMarelliIAW 4EFK-LineNoNo

Checksum Button

FiatBravo1.6 JTDM 16VBoschEDC16C39-5.5CANYesYesYes
FiatBravo1.9 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatBravo1.9 JTD 16VBoschEDC16C9K-LineYesYesYes
FiatBravo2.0 24VBoschME3.1K-LineYesYesYes
FiatBravo2.0 JTDM 16VBoschEDC16C39-5.5CANYesYesYes
FiatBravo2.0 JTDM 16VBoschEDC16C9K-LineYesYesYes
FiatCroma1.9 JTDMBoschEDC16C9K-LineYesYesYes
FiatCroma2.4 JTDMBoschEDC16C9K-LineYesYesYes
FiatCoupe2.0 24VBoschME3.1K-LineYesYesYes
FiatDobl?1.2 8VMarelliIAW 59FK-LineNoNo

Checksum Button

FiatDobl?1.2 16VBoschME7.H4K-LineYesYesYes
FiatDobl?1.3 JDTMMarelliMultijet 6JFK-LineYesYesYes
FiatDobl?1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
FiatDobl?1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatDobl?1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatDobl?1.6 JTDM 16vBoschEDC16C39-5.5CANYesYesYes
FiatDobl?1.9 JTDMBoschEDC16C9K-LineYesYesYes
FiatDobl?1.9 JTDBoschEDC15C7-2.13K-LineYesYes

Checksum Button

FiatDobl?1.3 JTDMMarelliMultijet MJD9DFCANNoNoYes
FiatDucato1.9 JTDMBoschEDC16C9K-LineYesYesYes
FiatDucato2.0 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatDucato2.0 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatDucato2.0 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatDucato2.2 JTD MJBoschEDC16C39K-LineYesYesYes
FiatDucato2.3 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatDucato2.3 JTD MJBoschEDC16C39K-LineYesYesYes
FiatDucato2.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatDucato2.3 JTDMMarelliMultijet MJD9DFCANNoNoYes
FiatDucato2.4 JTDMBoschEDC16C9K-LineYesYesYes
FiatDucato2.8 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatDucato3.0 JTD MJBoschEDC16C39K-LineYesYesYes
FiatFiorino1.3 JDTMMarelliMultijet 6JFK-LineYesYesYes
FiatFiorino1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
FiatFiorino1.3 JDTMMarelliMultijet 6F3CANYesYesYes
FiatFiorino1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatFiorino1.9 JTDMBoschEDC16C9K-LineYesYesYes
FiatGrande Punto0.9 JTMMarelliTwinAir MM8GSFCANYesYesYes
FiatGrande Punto0.9 JTMMarelliTwinAir MM8GSWCANYesYesYes
FiatGrande Punto1.2LMarelli5SF3.M1/M2CANYesYesYes
FiatGrande Punto1.2LMarelli5SF8/9CANYesYesYes
FiatGrande Punto1.3 JTDMMarelliMultijet 6F3CANYesYesYes
FiatGrande Punto1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
FiatGrande Punto1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatGrande Punto1.3 JTDMMarelliMultijet MJD9DFCANNoNoYes
FiatGrande Punto1.4BoschME7.6.3CANYesYesYes
FiatGrande Punto1.4BoschME7.6.3KLineYesYesYes
FiatGrande Punto1.4TBoschME7.9.10CANYesYesYes
FiatGrande Punto1.4 16vBoschME7.9.10KLineYesYesYes
FiatGrande Punto1.4 16v TBoschME7.9.10KLineYesYesYes
FiatGrande Punto1.9 JTD MJBoschEDC16C39CANYesYesYes
FiatIdea1.2 16VBoschME7.H4K-LineYesYesYes
FiatIdea1.2 16VMarelliIAW 5SF3K-LineYesYesYes
FiatIdea1.2 16VMarelliIAW 5SF8K-LineYesYesYes
FiatIdea1.2 16VMarelliIAW 9GFCANYesYesYes
FiatIdea1.3 JDTMMarelliMultijet 6JFK-LineYesYesYes
FiatIdea1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
FiatIdea1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatIdea1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
FiatIdea1.9 JTDMBoschEDC16C9K-LineYesYesYes
FiatMarea1.9 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatMarea2.0 24VBoschME3.1K-LineYesYes

Checksum Button

FiatMarea2.4 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatMultipla1.6 16VMarelliIAW 5NFK-LineNoNo

Checksum Button

FiatMultipla1.9 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatMultipla1.9 JTDMBoschEDC16CK-LineYesYesYes
FiatPanda0.9 JTMMarelliTwinAir MM8GSFCANYesYesYes
FiatPanda0.9 JTMMarelliTwinAir MM8GSWCANYesYesYes
FiatPanda1.2 8VMarelliIAW 59FK-LineNoNo

Checksum Button

FiatPanda1.2 16VMarelliIAW 5NFK-LineNoNo

Checksum Button

FiatPanda1.2 16VMarelliIAW 5SF3K-LineYesYesYes
FiatPanda1.2 16VMarelliIAW 5SF8K-LineYesYesYes
FiatPanda1.2 16VMarelliIAW MM9CANYesYesYes
FiatPanda1.3 JDTMMarelliMultijet 6JFK-LineYesYesYes
FiatPanda1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
FiatPanda1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatPanda1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
FiatPanda1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatPanda1.3 JTDMMarelliMultijet MJD9DFCANNoNoYes
FiatPanda1.4 100hpBoschME7.6.3CANYesYesYes
FiatPanda1.4 100hpBoschME7.6.3KLineYesYesYes
FiatPunto1.2 8VMarelliIAW 59FK-LineNoNo

Checksum Button

FiatPunto1.2 16VBoschME7.H4K-LineYesYesYes
FiatPunto1.2 16VMarelliIAW 5SF3K-LineYesYesYes
FiatPunto1.3 JDTMMarelliMultijet 6JFK-LineYesYesYes
FiatPunto1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
FiatPunto1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatPunto1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
FiatPunto1.9 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatPunto1.9 JTDMBoschEDC16CK-LineYesYesYes
FiatQubo1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatQubo1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatQubo1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
FiatSedici1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
FiatSedici1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatSedici1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
FiatSedici1.6 JTD MJBoschEDC16C39K-LineYesYesYes
FiatSedici1.9 JTD MJBoschEDC16C39K-LineYesYesYes
FiatSedici2.0 JTD MJBoschEDC16C39K-LineYesYesYes
FiatScudo1.6 HDIBoschEDC16C34K-Line/CANYesYesYes
FiatScudo2.0 TDBoschEDC5C12K-LineYesYes

Checksum Button

FiatScudo2.0 TDSiemensSID803AK-Line/CANYesYesYes
FiatScudo2.0 HDIDelphiDCM 3.5CANYesYesYes
FiatStilo1.6 16VMarelliIAW 5NFK-LineNoNo

Checksum Button

FiatStilo1.9 JTDBoschEDC15CK-LineYesYes

Checksum Button

FiatStilo1.9 JTDBoschEDC16C8K-LineYesYesYes
FiatStilo1.9 JTD MJBoschEDC16C39K-LineYesYesYes
FiatStilo1.9 JDTMMarelliMultijet 6JFK-LineYesYesYes
FiatStilo2.0 24VBoschME7.H4K-LineYesYesYes
FiatStrada1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
FiatStrada1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
FiatStrada1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
FiatUlisse2.0 TDBoschEDC5C2K-LineYesYes

Checksum Button

FiatUlisse2.0 TDSiemensSID803AK-Line/CANYesYesYes
FiatUlisse2.2 TDBoschEDC5C2K-LineYesYes

Checksum Button

FordC-Max1.6 TDCiBoschEDC16C3K-Line\CANYesYesYes
FordC-Max1.6 TDCiBoschEDC16C34K-Line\CANYesYesYes
FordC-Max1.6 TDCiBoschEDC16C34-5K-Line\CANYesYesYes
FordC-Max2.0 TDiSiemensSid 803CANYesYesYes
FordC-Max2.0 TDiSiemensSid 803A-83MCANYesYesYes
FordC-Max2.0 TDiSiemensSid 202CANYesYesYes
FordFiesta1.4 TDCiSiemensSid 206CANYesYesYes
FordFiesta1.4 TDCiSiemensSid 802/804CANYesYesYes
FordFiesta1.6 TDCiBoschEDC16C3K-Line\CANYesYesYes
FordFiesta1.6 TDCiBoschEDC16C34-2K-Line\CANYesYesYes
FordFiesta1.6 TDCiBoschEDC16C34-5K-Line\CANYesYesYes
FordFocus1.6 TDCiBoschEDC16C3K-Line\CANYesYesYes
FordFocus1.6 TDCiBoschEDC16C34-2K-Line\CANYesYesYes
FordFocus1.6 TDCiBoschEDC16C34-5K-Line\CANYesYesYes
FordFocus1.8 TDiSiemensSid 803A-83MCANYesYesYes
FordFocus2.0 TDiSiemensSid 803CANYesYesYes
FordFocus2.0 TDiSiemensSid 803A-83MCANYesYesYes
FordFocusST 2.5 TBoschME9.0CANNoNoYes
FordFocusRS 2.5 TBoschME9.0CANNoNoYes
FordFusion Style1.4 TDCiSiemensSid 206CANYesYesYes
FordFusion Style1.4 TDCiSiemensSid 802/804CANYesYesYes
FordFusion Style1.6 TDCiBoschEDC16C34-2K-Line\CANYesYesYes
FordFusion Style1.6 TDCiBoschEDC16C34-5K-Line\CANYesYesYes
FordGalaxy1.9 TDIBoschEDC15CK-LineYesYes

Checksum Button

FordGalaxy2.0 TDCiSiemensSID 206CANYesYesYes
FordGalaxy2.2 TDCiSiemensSID 206CANYesYesYes
FordKA1.3 TDCiMarelliMultijet 6F3CANYesYesYes
FordKA1.3 TDCiMarelliMultijet MJD9DFCANNoNoYes
FordKuga2.0 TDCiSiemensSID 206CANYesYesYes
FordKuga2.0 TDCiDelphiDCM 3.5CANYesYesYes
FordKuga2.0 TDiSiemensSid 803A-83MCANYesYesYes
FordMondeo2.0 TDCiSiemensSID 206CANYesYesYes
FordMondeo2.0 TDCiDelphiDCM 3.5CANYesYesYes
FordS-Max2.0 TDCiSiemensSID 206CANYesYesYes
FordS-Max2.0 TDCiDelphiDCM 3.5CANYesYesYes
FordTransit2.0 TDiSiemensSID 206CANYesYesYes
FordTransit2.2 TDCiSiemensSID 208CANNoYesYes
FordTransit2.2 TDCiVisteonDCU 102CANYesYesYes
FordTransit2.4 TDCiVisteonDCU 102CANYesYesYes
FordTransit3.2 TDCiVisteonDCU 102CANYesYesYes
GenericMicro BootGenericBoschME2.1 256KbKlineYesYes

Checksum Button

GenericMicro BootGenericBoschME2.8 512KbKlineYesYes

Checksum Button

GenericMicro BootGenericBoschME7.XX 512KbKlineYesYes

Checksum Button

GenericMicro BootGenericBoschME7.XX 1MbKlineYesYes

Checksum Button

GenericMicro BootGenericBoschEDC15CXKlineYesYes

Checksum Button

GenericMicro BootGenericBoschEDC15P/EDC15V (VAG)KlineYesYes

Checksum Button

GenericMicro BootGenericMultiST10F168KlineYesYes

Checksum Button

GenericMicro BootGenericMultiST10F269KlineYesYes

Checksum Button

GenericMicro BootGenericMultiST10F272KlineYesYes

Checksum Button

GenericMicro BootGenericMultiST10F280KlineYesYes

Checksum Button

GenericMicro BootGenericMultiST10F273KlineNoNo

Checksum Button

GenericMicro BootGenericMultiST10F275KlineNoNo

Checksum Button

GenericMicro BootGenericMultiST10F296KlineNoNo

Checksum Button

GenericMicro BootGenericBoschST10F296 (1024Kb)KlineNoNo

Checksum Button

GenericMicro BootGenericSagemS2000 (C167/ST10)KlineYesYes

Checksum Button

GenericMicro BootGenericDelphiDDCR (C167/ST10)KlineYesYes

Checksum Button

GenericMicro BootGenericSiemensEMS3132 C167KlineYesYes

Checksum Button

GenericMicro BootGenericSiemensSID 801/801A C167/(ST10)KlineYesYes

Checksum Button

GenericMicro BootGenericSiemensSID 804/806 C167/(ST10)KlineYesYes

Checksum Button

GenericMicro BootGenericBoschST10F296 (832Kb + 1024Kb)KlineNoNo

Checksum Button

GenericMicro BootGenericSiemensSIM4LE/SIM4SE (C167/ST10)KlineNoNo

Checksum Button

GenericMicro BootGenericSiemensDMEEMS2 (C167/ST10)KlineYesYes

Checksum Button

GenericMicro BootGenericSiemensSIM4LKE (C167/ST10)KlineYesYes

Checksum Button

GenericMicro BootGenericSiemensMS42/MS43 (C167/ST10)KlineYesYes

Checksum Button

GenericMicro BootGenericOpel BoschME7.6.2/3KLineNoNo

Checksum Button

GenericMicro BootGenericMarelliMDJ 8DF MPC556XCANNoNo

Checksum Button

GenericMicro BootGenericMarelliMDJ 9DF MPC5644xCANNoNo

Checksum Button

GenericMicro BootGenericFord/PSA DelphiDCM 3.5 MPC5566CANNoNo

Checksum Button

GenericMicro BootGenericMercedes DelphiCRD 2.2 (DCM 3.5) MPC5566CANNoNo

Checksum Button

GenericEEpromVAGBoschEDC15X E2pKlineYesYes

Checksum Button

GenericEEpromGenericBoschEDC15X E2pKlineYesYes

Checksum Button

GenericEEpromVAGBoschME7X (C167) ST95P08 E2pKlineYesYes

Checksum Button

GenericEEpromVAGBoschME7X (ST10) M95xxx E2pKlineYesYes

Checksum Button

GenericEEpromFIATBoschMED7.1.1 E2pKlineYesYes

Checksum Button

GenericEEpromFIATBoschMED7.6.2 E2pKlineYesYes

Checksum Button

GenericEEpromFIATBoschMED7.6.1 E2pKlineYesYes

Checksum Button

GenericEEpromFIATBoschME7.9.10 E2pKlineYesYes

Checksum Button

GenericEEpromFIATBoschME7.3.1 Hybrid E2pKlineYesYes

Checksum Button

GenericEEpromFIATBoschME3.1/ME7.3H4 Hybrid E2pKlineYesYes

Checksum Button

GenericEEpromPeugeot/CitroenSiemensSID 801/801A E2pKlineYesYes

Checksum Button

GenericEEpromPeugeot/CitroenSiemensSID 804 E2pKlineYesYes

Checksum Button

GenericEEpromPeugeot/CitroenSiemensSID 801/801A E2pKlineYesYes

Checksum Button

GenericEEpromPeugeot/CitroenSiemensSID 805/806 E2pCANYesYes

Checksum Button

GenericEEpromMCC SmartBoschMEG1.x E2pKlineYesYes

Checksum Button

GenericEEpromMCC SmartBoschMEG1.x E2pKlineYesYes

Checksum Button

GenericEEpromVolvoBoschME7.0CAN 250k/500kYesYes

Checksum Button

GenericEEpromVolvoBoschEDC15C11-4CAN 250kYesYes

Checksum Button

GenericEEpromVolvo < 2008BoschEDC16C31CANNoNo

Checksum Button

GenericEEpromVolvo < 2008BoschEDC16C34CANNoNo

Checksum Button

GenericEEpromVolvo < 2008BoschME9.0CANNoNo

Checksum Button

GenericEEpromRenault/VolvoBoschEDC15CXKLineYesYes

Checksum Button

GenericEEpromPeugeot/CitroenBoschEDC15CXKLineYesYes

Checksum Button

GenericEEpromFiatMarelliMDJ 9DF MPC5644xCANNoNo

Checksum Button

GenericEEpromMercedesDelphiCRD 2.2 (DCM 3.5) MPC5566CANNoNo

Checksum Button

GenericEEpromFiatMarelliMDJ 8F2 MPC55xxCANNoNo

Checksum Button

GenericEEpromFord/PSADelphiDCM 3.5 MPC5566CANNoNo

Checksum Button

GenericEEpromSmartBosch EEpromME7.7.0KLineYesYes

Checksum Button

GenericEEpromOpelBosch EEpromME7.6.2/3KLineYesYes

Checksum Button

GenericEEpromFiatBosch EEpromME7.6.3KLineYesYes

Checksum Button

GenericSpecialOpelBosch FlashME7.6.1 AM29F800KLineNoNoYes
GenericSpecialOpelBosch FlashME7.6.1 ST MicroKLineNoNoYes
GenericSpecialOpelBosch FlashME7.6.2 AM29F800KLineNoNoYes
GenericSpecialOpelBosch FlashME7.6.2/3 ST MicroKLineNoNoYes
GenericSpecialOpelBosch FlashME7.6.2/3 ST MicroCANNoNoYes
GenericSpecialOpelBosch EEpromME7.6.2 AM29F800KLineNoNo

Checksum Button

GenericSpecialOpelBosch EEpromME7.6.2/3 ST MicroKLineNoNo

Checksum Button

GenericSpecialOpelBosch EEpromME7.6.1 AM29F800KLineNoNo

Checksum Button

GenericSpecialOpelBosch EEpromME7.6.2/3 ST MicroKLineNoNo

Checksum Button

GenericSpecialOpelBosch EEpromME7.6.2/3 ST MicroCANNoNo

Checksum Button

GenericSpecialOpelBoschFlash ME1.5.5 AM29F400K-LineNoNoYes
GenericSpecialOpelBoschFlash ME7.6H4 AM29F400K-LineNoNoYes
GenericSpecialOpelBoschEEprom ME1.5.5 AM29F400KlineNoNo

Checksum Button

GenericSpecialOpelBoschEEprom ME7.6H4 AM29F400KlineNoNo

Checksum Button

GenericSpecialVAGBosch FlashME7.5KLineNoNoYes
GenericSpecialVAGBosch EEpromME7.5KLineNoNo

Checksum Button

GenericSpecialFiatBosch EEpromME7.3.1KLineYesYes

Checksum Button

GenericSpecialFiatBosch EEpromME7.6.3KLineYesYes

Checksum Button

GenericSpecialFiatBosch EEpromME7.6.3CANYesYes

Checksum Button

GenericSpecialFiatBosch EEpromME7.9.10KLineYesYes

Checksum Button

GenericSpecialFiatBosch EEpromME7.9.10CANYesYes

Checksum Button

GenericSpecialFiatMarelli EEpromMDJ 8F2/3CANNoNo

Checksum Button

GenericSpecialFiatMarelli EEpromMDJ 9DFCANNoNo

Checksum Button

GenericSpecialFiatMarelli EEpromMDJ 9GFCANNoNo

Checksum Button

GenericSpecialOpelMarelli EEpromMDJ 602/603CANNoNo

Checksum Button

GenericSpecialToyotaBosch FlashM7.9.41K-LineNoNoYes
GenericSpecialToyotaBosch EEpromM7.9.41K-LineNoNo

Checksum Button

GenericSpecialSmartBosch FlashME7.7.0KLineYesYesYes
GenericSpecialSmartBosch EEpromME7.7.0KLineYesYes

Checksum Button

GenericSpecialPSABosch FlashME7.4.5 ST MicroKLineYesYesYes
GenericSpecialPSABosch EEpromME7.4.5 ST MicroKLineYesYes

Checksum Button

GenericTricoreVAG OnlyBoschEDC17/MED17 TricoreCANNoNo

Checksum Button

GenericTricoreVAG OnlyMultiMPPS Container fileUDS CAN ECU 1NoNo

Checksum Button

GenericTricoreVAG OnlyMultiMPPS Container fileUDS CAN ECU 2NoNo

Checksum Button

GenericTricoreVAG (M)EDC17BoschMPPS Container fileCAN TP2.0 ECU 1NoNo

Checksum Button

GenericTricoreVAG (M)EDC17BoschMPPS Container fileCAN TP2.0 ECU 2NoNo

Checksum Button

GenericTricoreVAG (M)EDC17BoschMPPS Container fileKLineNoNo

Checksum Button

GenericTricoreVAG TDI (Tricore)BoschEDC17CAN TP2.0 ECU 1NoNoYes
GenericTricoreVAG TDI (Tricore)BoschEDC17CAN TP2.0 ECU 2NoNoYes
GenericTricoreVAG TDI (Tricore)BoschEDC17UDS ECU 1NoNoYes
GenericTricoreVAG TDI (Tricore)BoschEDC17UDS ECU 2NoNoYes
GenericTricoreVAG TFSI (Tricore)BoschMED17CAN TP2.0 ECU 1NoNoYes
GenericTricoreVAG TFSI (Tricore)BoschMED17CAN TP2.0 ECU 2NoNoYes
GenericTricoreVAG TFSI (Tricore)BoschMED17UDS ECU 1NoNoYes
GenericTricoreVAG TFSI (Tricore)BoschMED17UDS ECU 2NoNoYes
GenericTricoreVAG TDI (Tricore)SiemensSimos Pcr2.xUDSNoNoYes
GenericTricoreVAG TDI (Tricore)SiemensSimos 8.3/4UDSNoNoYes
GenericTricoreRenault/NissanSiemensSID307/309CANNoNo

Checksum Button

GenericTricoreRenault/NissanSiemensSID310CANNoNo

Checksum Button

GenericTricoreMercedesSiemensSID307CANNoNo

Checksum Button

GenericTricoreMercedesSiemensSID309/310CANNoNo

Checksum Button

HoldenHolden Signum2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

HoldenHolden Signum1.9 16V CDTIBoschEDC16C9CANYesYesYes
HoldenHolden Signum1.9 16V CDTIBoschEDC16C39CANYesYesYes
HoldenHolden Vectra2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

HoldenHolden Vectra1.9 16V CDTIBoschEDC16C9CANYesYesYes
HoldenHolden Vectra1.9 16V CDTIBoschEDC16C39CANYesYesYes
HondaAccord2.2 CDTiBoschEDC16C7K-LineYesYesYes
HondaCivic1.5 CDIBoschEDC15C7K-LineYesYes

Checksum Button

HondaCivic2.2 CDTiBoschEDC16C2-4K-LineYesYesYes
HondaCR-v2.2 CDTiBoschEDC16C2-4.50K-LineYesYesYes
HyundaiAccent1.5 CDIBoschEDC15C2K-LineYesYes

Checksum Button

HyundaiElantra2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

HyundaiGetz1.5 CDIBoschEDC15C2K-LineYesYes

Checksum Button

HyundaiGetz1.5 CRDIBoschEDC16C39K-LineYesYesYes
HyundaiH1 Startex2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

Hyundaii301.6 CDIBoschEDC16C39K-LineYesYesYes
HyundaiMatrix1.5 CDIBoschEDC15C2K-LineYesYes

Checksum Button

HyundaiSanta Fe2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

HyundaiSanta Fe2.0 CDIBoschEDC16C39K-LineYesYesYes
HyundaiSanta Fe2.2 CDIBoschEDC16C39K-LineYesYesYes
HyundaiSonata2.0 CDIBoschEDC16C39K-LineYesYesYes
HyundaiTrajet2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

HyundaiTucson2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

HyundaiTucson2.0 CRDIBoschEDC16C39K-LineYesYesYes
IsuzuD-Max3.0L DTBoschEDC15MK-LineNoNo

Checksum Button

IsuzuRodeo2.5L DTBoschEDC15MK-LineNoNo

Checksum Button

IvecoDaily2.3 29 L 10BoschEDC7K-LineYesYesYes
IvecoDaily2.3 29 L 10BoschEDC16C39K-LineYesYesYes
IvecoDaily2.3 29 L 12BoschEDC7K-LineYesYesYes
IvecoDaily2.3 29 L 12BoschEDC16C39K-LineYesYesYes
IvecoDaily2.3 35 C 10BoschEDC7K-LineYesYesYes
IvecoDaily2.3 35 C 10BoschEDC16C39K-LineYesYesYes
IvecoDaily2.3 35 C 12BoschEDC7K-LineYesYesYes
IvecoDaily2.3 35 C 12BoschEDC16C39K-LineYesYesYes
IvecoDaily2.3 35 S 10BoschEDC7K-LineYesYesYes
IvecoDaily2.3 35 S 10BoschEDC16C39K-LineYesYesYes
IvecoDaily2.3 35 C 9BoschEDC7K-LineYesYesYes
IvecoDaily2.3 35 C 9BoschEDC16C39K-LineYesYesYes
IvecoDaily2.8 35 C 13BoschEDC7K-LineYesYesYes
IvecoDaily2.8 35 C 13BoschEDC16C39K-LineYesYesYes
IvecoDaily2.8 35 C 14BoschEDC7K-LineYesYesYes
IvecoDaily2.8 35 C 14BoschEDC16C39K-LineYesYesYes
IvecoDaily2.8 35 C 15BoschEDC7K-LineYesYesYes
IvecoDaily2.8 35 C 15BoschEDC16C39K-LineYesYesYes
IvecoDaily2.8 35 S 13BoschEDC7K-LineYesYesYes
IvecoDaily2.8 35 S 13BoschEDC16C39K-LineYesYesYes
IvecoDaily2.8 40 C 15BoschEDC7K-LineYesYesYes
IvecoDaily2.8 40 C 15BoschEDC16C39K-LineYesYesYes
IvecoDaily2.8 60 C 15BoschEDC7K-LineYesYesYes
IvecoDaily2.8 60 C 15BoschEDC16C39K-LineYesYesYes
IvecoDaily3.0 35 C 17BoschEDC7K-LineYesYesYes
IvecoDaily3.0 35 C 17BoschEDC16C39K-LineYesYesYes
JaguarS-Type2.7 TD V6SiemensSid 204CANYesYesYes
JaguarX-Type2.7 TD V6SiemensSid 204CANYesYesYes
JeepCherokee2.5 CRDBoschEDC15C2K-LineYesYes

Checksum Button

JeepCherokee2.8 16V CRDBoschEDC15C2K-LineYesYes

Checksum Button

JeepCherokee2.8 16V CRDBoschEDC16C2-C2K-Line/CANYesYesYes
JeepCherokee2.8 16V CRDBoschEDC16CP31K-Line/CANYesYesYes
JeepCommander3.0 CRDBoschEDC16CP31K-Line/CANYesYesYes
JeepCompass2.0 CRDBoschEDC16U31CANYesYesYes
JeepGrand Cherokee2.7 CRDBoschEDC15C2K-LineYesYes

Checksum Button

JeepGrand Cherokee3.0 CRDBoschEDC16CP31K-Line/CANYesYesYes
JeepLiberty2.5 CRDBoschEDC15C2K-LineYesYes

Checksum Button

JeepLiberty2.8 16V CRDBoschEDC15C2K-LineYesYes

Checksum Button

JeepLiberty2.8 16V CRDBoschEDC16C2-C2K-Line/CANYesYesYes
JeepLiberty2.8 16V CRDBoschEDC16CP31K-Line/CANYesYesYes
JeepPatriot2.0 CRDBoschEDC16U31CANYesYesYes
JeepWrangler2.8 CRDBoschEDC16CP31K-Line/CANYesYesYes
KiaCarens2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

KiaCarens2.0 CRDIBoschEDC16C39K-LineYesYesYes
KiaCeed1.6 CRDIBoschEDC16C39K-LineYesYesYes
KiaCeed2.0 CRDIBoschEDC16C39K-LineYesYesYes
KiaRio1.5 CRDIBoschEDC16C39K-LineYesYesYes
KiaSorento2.5 CDIBoschEDC15C2K-LineYesYes

Checksum Button

KiaSorento2.5 CRDIBoschEDC16C39K-LineYesYesYes
KiaSportage2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

KiaSportage2.0 CRDIBoschEDC16C39K-LineYesYesYes
KTMX Bow2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
LanciaK2.4 JTDBoschEDC15CK-LineYesYes

Checksum Button

LanciaDelta1.4 16vBoschME7.9.10KLineNoYesYes
LanciaDelta1.4 16v TBoschME7.9.10KLineNoYesYes
LanciaDelta1.6 JTDM 16vBoschEDC16C39-5.5CANYesYesYes
LanciaDelta2.0 JTDM 16vBoschEDC16C39-5.5CANYesYesYes
LanciaLybra2.0LBoschME7.3.1K-LineYesYesYes
LanciaLybra1.9 JTDBoschEDC15CK-LineYesYes

Checksum Button

LanciaLybra2.4 JTDBoschEDC15CK-LineYesYes

Checksum Button

LanciaLybra1.9 JTDBoschEDC16CK-LineYesYesYes
LanciaLybra2.4 JTDBoschEDC16CK-LineYesYesYes
LanciaMusa1.2 16VBoschME7.H4K-LineYesYesYes
LanciaMusa1.3 JTDMMarelliMultijet 6JFK-LineYesYesYes
LanciaMusa1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
LanciaMusa1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
LanciaMusa1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
LanciaMusa1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
LanciaMusa1.9 JTDMBoschEDC16CK-LineYesYesYes
LanciaPhedra2.0 TDBoschEDC15C2K-LineYesYes

Checksum Button

LanciaPhedra2.2 TDBoschEDC15C2K-LineYesYes

Checksum Button

LanciaPhedra2.2 TDBoschEDC16CP39K-Line/CANYesYesYes
LanciaThesis2.0 24VBoschME7.3.1K-LineYesYesYes
LanciaThesis2.4 JTDBoschEDC15CK-LineYesYes

Checksum Button

LanciaThesis2.4 JTDBoschEDC16CK-LineYesYesYes
LanciaYpsilon1.2 16VBoschME7.H4K-LineYesYesYes
LanciaYpsilon1.2 16VMarelliIAW 5SF3K-LineYesYesYes
LanciaYpsilon1.2 16VMarelliIAW 5SF8K-LineYesYesYes
LanciaYpsilon1.2 16VMarelliIAW 9GFCANYesYesYes
LanciaYpsilon1.3 JTDMMarelliMultijet 6JFK-LineYesYesYes
LanciaYpsilon1.3 JDTMMarelliMultijet 6F3K-LineYesYesYes
LanciaYpsilon1.3 JTDMMarelliMultijet MJD8F2/3K-LineYesYesYes
LanciaYpsilon1.3 JTDMMarelliMultijet MJD8F2/3CANYesYesYes
LanciaYpsilon1.3 JTDMMarelliMultijet MJD8DFK-LineYesYesYes
LanciaYpsilon1.3 JTDMMarelliMultijet MJD9DFCANNoNoYes
LanciaZeta2.0 TDBoschEDC5C2K-LineYesYes

Checksum Button

Land RoverDefender2.2 TDCiSiemensSID 208CANNoYesYes
Land RoverDefender2.4 TDCiVisteonDCU 106CANYesYesYes
Land RoverDefender2.5 TD5LucasMems3K-LineYesYesYes
Land RoverDiscovery2.2 TD4BoschEDC16CP39CANYesYesYes
Land RoverDiscovery2.5 TD5LucasMems3K-LineYesYesYes
Land RoverDiscovery2.7 TDV6SiemensSID 201/203/204CANYesYesYes
Land RoverFreelander2.0 CDTBoschDDE4.0K-LineYesYesYes
Land RoverFreelander2.2 TD4BoschEDC16CP39CANYesYesYes
Land RoverRange Rover3.0 TD6BoschDDE4.0K-LineYesYesYes
Land RoverRange Rover4.4-4.6L V8BoschME7.2K-LineYesYes

Checksum Button

Land RoverRange Rover Sport2.7 TDV6SiemensSID 201/203/204CANYesYesYes
Land RoverRange Rover Sport3.6 TDV8SiemensSID 201/203/204CANYesYesYes
London Taxis InternationalTX4TX4 2.5 VM TDIBoschEDC16C39K-LineYesYesYes
London Taxis InternationalTX4TX4 2.5 VM TDIBoschEDC16C9K-LineYesYesYes
Mazda3Mazda 3 1.6 TdiBoschEDC16C3K-Line\CANYesYesYes
Mazda3Mazda 3 1.6 TdiBoschEDC16C34K-Line\CANYesYesYes
Mazda5Mazda 5 2.0 MZR-CD 110hpDensoRF7K/RF8KCANYesYesYes
Mazda5Mazda 5 2.0 MZR-CD 121hpDensoRFYFCANYesYesYes
Mazda5Mazda 5 2.0 MZR-CD 143hpDensoRFAR/RFYGCANYesYesYes
Mazda6Mazda 6 2.0 MZR-CD 110hpDensoRF7K/RF8KCANYesYesYes
Mazda6Mazda 6 2.0 MZR-CD 110hpDensoRF8GCANYesYesYes
Mazda6Mazda 6 2.0 MZR-CD 121hpDensoRFYFCANYesYesYes
Mazda6Mazda 6 2.0 MZR-CD 143hpDensoRFAR/RFYGCANYesYesYes
Mazda6Mazda 6 2.2 MZR-CD 163hpDensoR2AB/R2BXCANYesYesYes
Mazda6Mazda 6 2.2 MZR-CD 185hpDensoR2AB/R2BXCANYesYesYes
Mazda6Mazda 6 2.2 MZR-CD 185hpDensoR2ABCANYesYesYes
MazdaCX7Mazda CX7 2.2 MZR-CD 173hpDensoR2AXCANYesYesYes
MCC-SmartSmart600ccBoschMEG1.0K-LineNoYes

Checksum Button

MCC-SmartSmart700ccBoschMEG1.1K-LineNoYes

Checksum Button

MCC-SmartSmart800ccBoschEDG15C5K-LineYesYes

Checksum Button

MCC-SmartForTwo1.5l CdiBoschEDG16CP31/32K-Line/CANYesYesYes
MCC-SmartForFour1.5l CdiBoschEDG16CP31/32K-Line/CANYesYesYes
MercedesCLKCLK 2.7 CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesCLKCLK 2.2 CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesCLKCLK 3.0 V6 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesCLKCLK 200K 1.8 (W208)SiemensSIM4SEK-LineYesYesYes
MercedesCLKCLK 200K 2.0 (W208)SiemensSIM4SEK-LineYesYesYes
MercedesCLKCLK 200K 1.8 (W209)SiemensSIM4LKEK-LineYesYes

Checksum Button

MercedesCLKCLK 320 3.2 (W208)BoschME2.8K-LineNoYesYes
MercedesCLKCLK 430 4.3 (W208)BoschME2.8K-LineNoYesYes
MercedesCLKCLK 55 5.5 (W208)BoschME2.8K-LineNoYesYes
MercedesCLKCLK 240 2.6 (W209)BoschME2.8K-LineNoYesYes
MercedesCLKCLK 320 3.2 (W209)BoschME2.8K-LineNoYesYes
MercedesCLKCLK 500 5.0 (W209)BoschME2.8K-LineNoYesYes
MercedesCLKCLK 55 5.5 (W209)BoschME2.8K-LineNoYesYes
MercedesCLKCLK 55 5.5 (W209)BoschME2.8.1K-LineNoYesYes
MercedesCLKCLK 280 3.0 (W209)BoschME9.7CANNoYesYes
MercedesCLKCLK 350 3.5 (W209)BoschME9.7CANNoYesYes
MercedesCLKCLK 500 5.5 (W209)BoschME9.7CANNoYesYes
MercedesCLKCLK 200 2.0 (W208)BoschME2.1K-LineYesYesYes
MercedesCLSCLS 3.0 V6 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesCLSCLS 500 5.0 (W219)BoschME2.8K-LineNoYesYes
MercedesCLSCLS 280 3.0BoschME9.7CANNoYesYes
MercedesCLSCLK 300 3.0BoschME9.7CANNoYesYes
MercedesCLSCLK 350 3.5BoschME9.7CANNoYesYes
MercedesCLSCLK 500 5.5BoschME9.7CANNoYesYes
MercedesKlasse-AA160 2.0 CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-AA160 2.0 CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-AA160 2.0 CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-AA170 2.0 CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-AA170 1.7 CDIBoschEDC15C2K-LineYesYes

Checksum Button

MercedesKlasse-AA180 2.0 CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-AA180 2.0 CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-AA200 2.0 CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-AA200 2.0 CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-BB180 2.0 CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-BB180 2.0 CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-BB200 2.0 CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-BB200 2.0 CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-BB200 2.0 CDIBoschEDC16C32K-Line/CANYesYesYes
MercedesKlasse-C2.0 (W201) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C2.0 (W202) CDIBoschEDC15C5K-LineYesYes

Checksum Button

MercedesKlasse-C2.0 (W203) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C2.2 (W201) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C2.0 (W202) CDIBoschEDC15C5K-LineYesYes

Checksum Button

MercedesKlasse-C2.2 (W203) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C2.7 (W201) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C2.7 (W203) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C3.0 (W201) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C3.2 (W201) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-C3.2 (W203) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-CC200 2.0 (W203) CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-CC200 2.0 (W203) CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-CC220 2.2 (W203) CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-CC220 2.2 (W203) CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-CC270 2.7 (W203) CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-CC270 2.7 (W203) CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-CC280 3.0 (W203) CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-CC320 3.2 (W203) CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-CC320 3.0 (W203) CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-CC320 3.0 (W203) CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-C3.0 AMG CDI (W203)BoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-CC160K 1.8 (W203)SiemensSIM4LEK-LineYesYesYes
MercedesKlasse-CC180K 1.8 (W203)SiemensSIM4LEK-LineYesYesYes
MercedesKlasse-CC180K 1.8 (W203)SiemensSIM4SEK-LineYesYesYes
MercedesKlasse-CC180K 2.0 (W203)SiemensSIM4SEK-LineYesYesYes
MercedesKlasse-CC200K EVO 2.0 (W202)SiemensSIM4LEK-LineYesYesYes
MercedesKlasse-CC200K 1.8 (W203)SiemensSIM4LEK-LineYesYesYes
MercedesKlasse-CC200K EVO 2.0 (W203)SiemensSIM4LEK-LineYesYesYes
MercedesKlasse-CC230K 2.3 (W203)SiemensSIM4SEK-LineYesYesYes
MercedesKlasse-CC180K 1.8 (W203)SiemensSIM4LKEK-LineYesYes

Checksum Button

MercedesKlasse-CC200K 1.8 (W203)SiemensSIM4LKEK-LineYesYes

Checksum Button

MercedesKlasse-CC280 2.8 (W202)BoschME2.8K-LineNoYesYes
MercedesKlasse-CC43 4.3 (W202)BoschME2.8K-LineNoYesYes
MercedesKlasse-CC55 5.5 (W202)BoschME2.8K-LineNoYesYes
MercedesKlasse-CC55 5.5 (W202)BoschME2.8.1K-LineNoYesYes
MercedesKlasse-CC240 2.6 (W203)BoschME2.8K-LineNoYesYes
MercedesKlasse-CC320 3.2 (W203)BoschME2.8K-LineNoYesYes
MercedesKlasse-CC55 5.5 (W203)BoschME2.8K-LineNoYesYes
MercedesKlasse-CC230 2.5 (W203)BoschME9.7CANNoYesYes
MercedesKlasse-CC280 3.0 (W203)BoschME9.7CANNoYesYes
MercedesKlasse-CC350 3.5 (W203)BoschME9.7CANNoYesYes
MercedesKlasse-CC280 3.0 (W204)BoschME9.7CANNoYesYes
MercedesKlasse-CC350 3.5 (W204)BoschME9.7CANNoYesYes
MercedesKlasse-CC200 2.0BoschME2.1K-LineYesYesYes
MercedesKlasse-CC230 2.3BoschME2.1K-LineYesYesYes
MercedesKlasse-CC180 2.0BoschME2.1K-LineYesYesYes
MercedesKlasse-E2.0 (W210) CDIBoschEDC15C5K-LineYesYes

Checksum Button

MercedesKlasse-E2.0 (W210) CDIBoschEDC15C5K-LineYesYes

Checksum Button

MercedesKlasse-E2.0 (W210) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-E2.2 (W210) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-E2.7 (W210) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-E3.0 (W210) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-E3.2 (W201) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-E3.2 (W210) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-EE200 2.0 CDI (W211)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-EE200 2.0 CDI (W211)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-EE220 2.2 CDI (W211)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-EE220 2.2 CDI (W211)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-EE270 2.7 CDI (W211)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-EE270 2.7 CDI (W211)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-EE270 2.8 CDI (W211)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-EE270 2.8 CDI (W211)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-EE280 3.0 CDI (W211)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-EE280 3.0 CDI (W211)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-EE280 3.0 CDI (W211)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-EE320 3.0 CDI (W211)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-EE320 3.0 CDI (W211)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-EE320 3.2 CDI (W211)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-EE320 3.2 CDI (W211)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-EE320 3.2 CDI (W211)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-EE200 2.0 (W210)SiemensSIM4SEK-LineYesYesYes
MercedesKlasse-EE200 2.0 (W211)SiemensSIM4SEK-LineYesYesYes
MercedesKlasse-EE280 2.8 (W210)BoschME2.8K-LineNoYesYes
MercedesKlasse-EE320 3.2 (W210)BoschME2.8K-LineNoYesYes
MercedesKlasse-EE430 4.3 (W210)BoschME2.8K-LineNoYesYes
MercedesKlasse-EE55 5.5 (W210)BoschME2.8K-LineNoYesYes
MercedesKlasse-EE55 5.5 (W210)BoschME2.8.1K-LineNoYesYes
MercedesKlasse-EE240 2.6 (W211)BoschME2.8K-LineNoYesYes
MercedesKlasse-EE320 3.2 (W211)BoschME2.8K-LineNoYesYes
MercedesKlasse-EE500 5.0 (W211)BoschME2.8K-LineNoYesYes
MercedesKlasse-EE280 3.0BoschME9.7CANNoYesYes
MercedesKlasse-EE350 3.5BoschME9.7CANNoYesYes
MercedesKlasse-EE500 5.5BoschME9.7CANNoYesYes
MercedesKlasse-EE200 2.0BoschME2.1K-LineYesYesYes
MercedesKlasse-EE320 3.2BoschME2.1K-LineYesYesYes
MercedesKlasse-EE420 4.2BoschME2.1K-LineYesYesYes
MercedesKlasse-EE500 5.0BoschME2.1K-LineYesYesYes
MercedesKlasse-GG320 3.2 (W463)BoschME2.8K-LineNoYesYes
MercedesKlasse-GG500 5.0 (W463)BoschME2.8K-LineNoYesYes
MercedesKlasse-GG55 5.5 (W163)BoschME2.8K-LineNoYesYes
MercedesKlasse-GG500 5.5BoschME9.7CANNoYesYes
MercedesKlasse-M2.7 CDI (W163)BoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-M3.2 CDI (W163)BoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-MM320 3.2 (W163)BoschME2.8K-LineNoYesYes
MercedesKlasse-MM350 3.5 (W163)BoschME2.8K-LineNoYesYes
MercedesKlasse-MM430 4.3 (W163)BoschME2.8K-LineNoYesYes
MercedesKlasse-MM500 5.0 (W163)BoschME2.8K-LineNoYesYes
MercedesKlasse-MM55 5.5 (W163)BoschME2.8K-LineNoYesYes
MercedesKlasse-MG320 3.2BoschME2.1K-LineYesYesYes
MercedesKlasse-ML2.7 CDI (W164)BoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-ML3.2 CDI (W164)BoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-MLML280 3.0 CDI (W164)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-MLML280 3.0 CDI (W164)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-MLML280 3.0 CDI (W164)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-MLML320 3.0 CDI (W164)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-MLML320 3.0 CDI (W164)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-MLML320 3.0 CDI (W164)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-MLML320 3.2 CDI (W164)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-MLML320 3.2 CDI (W164)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-MLML320 3.2 CDI (W164)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-MLML-Class 4.2 V8 CDI (W164)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-MLML500 5.0 (W164)BoschME2.8K-LineNoYesYes
MercedesKlasse-MLML350 3.5BoschME9.7CANNoYesYes
MercedesKlasse-MLML500 5.5BoschME9.7CANNoYesYes
MercedesKlasse-MLML320 3.2BoschME2.1K-LineYesYesYes
MercedesKlasse-MLML430 4.3BoschME2.1K-LineYesYesYes
MercedesKlasse-MLML500 5.0BoschME2.1K-LineYesYesYes
MercedesKlasse-MLML55 5.5BoschME2.1K-LineYesYesYes
MercedesKlasse-RR280 3.0 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-RR320 3.0 CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-RR500 5.0 (W251)BoschME2.8K-LineNoYesYes
MercedesKlasse-SS320 3.2 CDI (W220) CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesKlasse-SS320 3.0 CDI (W221)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-SS320 3.2 CDI (W220)BoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesKlasse-SS320 3.2 CDI (W220)BoschEDC16C31K-Line/CANYesYesYes
MercedesKlasse-SS320 3.2 CDI (W220)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-SS420 4.2 V8 CDI (W221)BoschEDC16CP31K-Line/CANYesYesYes
MercedesKlasse-SS280 2.8 (W220)BoschME2.1K-LineYesYesYes
MercedesKlasse-SS320 3.2 (W220)BoschME2.1K-LineYesYesYes
MercedesKlasse-SS430 4.3 (W220)BoschME2.1K-LineYesYesYes
MercedesKlasse-SS500 5.0 (W220)BoschME2.1K-LineYesYesYes
MercedesKlasse-SS280 2.8 (W220)BoschME2.8K-LineNoYesYes
MercedesKlasse-SS320 3.2 (W220)BoschME2.8K-LineNoYesYes
MercedesKlasse-SS350 3.5 (W220)BoschME2.8K-LineNoYesYes
MercedesKlasse-SS430 4.3 (W220)BoschME2.8K-LineNoYesYes
MercedesKlasse-SS500 5.0 (W220)BoschME2.8K-LineNoYesYes
MercedesKlasse-SS55 5.5 (W220)BoschME2.8K-LineNoYesYes
MercedesKlasse-SS55 5.5 (W220)BoschME2.8.1K-LineNoYesYes
MercedesKlasse-SS300 3.0 (W221)BoschME9.7CANNoYesYes
MercedesKlasse-SS350 3.5 (W221)BoschME9.7CANNoYesYes
MercedesKlasse-SS400 3.5 (W221)BoschME9.7CANNoYesYes
MercedesKlasse-SS450 4.6 (W221)BoschME9.7CANNoYesYes
MercedesKlasse-SS500 5.5 (W221)BoschME9.7CANNoYesYes
MercedesKlasse-V2.2 CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesSLKSLK200K 1.8 (R171)SiemensSIM4SEK-LineYesYesYes
MercedesSLKSLK200K 2.0 (R170)SiemensSIM4SEK-LineYesYesYes
MercedesSLKSLK200K 1.8 (R171)SiemensSIM4LKEK-LineYesYes

Checksum Button

MercedesSLKSLK320 3.2 (W170)BoschME2.8K-LineNoYesYes
MercedesSLKSLK55 5.5 (W171)BoschME2.8K-LineNoYesYes
MercedesSLKSLK 280 3.0BoschME9.7CANNoYesYes
MercedesSLKSLK 300 3.0BoschME9.7CANNoYesYes
MercedesSLKSLK 350 3.5BoschME9.7CANNoYesYes
MercedesSLKSLK 200 2.0BoschME2.1K-LineYesYesYes
MercedesSLKSLK 230 2.3BoschME2.1K-LineYesYesYes
MercedesSprinter2.0 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesSprinter2.2 CDIBoschEDC15C2K-LineYesYes

Checksum Button

MercedesSprinter2.2 CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesSprinter2.2 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesSprinter2.7 CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesSprinter3.0 V6 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesVaneo2.2 CDIBoschEDC15C6K-LineYesYes

Checksum Button

MercedesVaneo2.2 CDIBoschEDC16C2/3/4K-Line/CANYesYesYes
MercedesVaneo2.2 CDIBoschEDC16C31K-Line/CANYesYesYes
MercedesVaneo3.0 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesViano3.0 V6 CDIBoschEDC16CP31K-Line/CANYesYesYes
MercedesVito2.2 CDI (W638)BoschEDC15C5K-LineYesYes

Checksum Button

MercedesVito2.2 CDI (W639)BoschEDC16C31K-Line/CANYesYesYes
MercedesVito3.0 CDI (W639)BoschEDC16CP31K-Line/CANYesYesYes
MGZT2.0 CDTIBoschDDE4.0K-LineYesYesYes
MiniCooper1.6SiemensEMS 2K-LineYesYes

Checksum Button

MiniCooper1.6 SSiemensEMS 2K-LineYesYes

Checksum Button

MiniCooper S1.6SiemensEMS 2K-LineYesYes

Checksum Button

MiniCooper S1.6 SSiemensEMS 2K-LineYesYes

Checksum Button

MiniOne1.4DBoschDDE4.0K-LineYesYesYes
MiniOne1.6SiemensEMS 2K-LineYesYes

Checksum Button

MiniOne1.6 DBoschEDC16C35K-Line_Fast/CANYesYesYes
MitsubishiASX1.8L DI-DDenso4N14CANYesYesYes
MitsubishiCarisma1.9 CDIBoschEDC15C3K-LineYesYes

Checksum Button

MitsubishiColt1.5l DI-DBoschEDG16CP31/32K-Line/CANYesYesYes
MitsubishiGrandis2.0 16V DI-DBoschEDC16U31CANYesYesYes
MitsubishiL2002.5L DI-D 136hpDenso4D56/4M41CANYesYesYes
MitsubishiLancer2.0 16V DI-DBoschEDC16U31CANYesYesYes
MitsubishiOutlander2.0 16V DI-DBoschEDC16U31CANYesYesYes
MitsubishiPajero2.5L DI-D 136hpDenso4D56/4M41CANYesYesYes
MitsubishiSpaceStar1.9 CDIBoschEDC15C3K-LineYesYes

Checksum Button

NissanAlmera2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanCabstar2.5 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanInterstar1.9 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanInterstar2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanInterstar2.5 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanInterstar2.5 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanJuke1.5 DCISiemensSID305 TricoreCANYesYesYes
NissanNavarra2.5L DCI 136hpDenso4D56/4M41CANYesYesYes
NissanPathfinder2.5L DCI 136hpDenso4D56/4M41CANYesYesYes
NissanPrimastar1.9 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanPrimastar2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanPrimastar2.0 DCIBoschEDC16CP33K-Line/CANYesYesYes
NissanPrimastarEDC16BoschNozzle CodesK-Line/CANYesYesYes
NissanQashqai1.5 DCiSiemensSID303CANYesYesYes
NissanQashqai1.5 (106hp) DCiSiemensSID304CANYesYesYes
NissanQashqai1.5 DCISiemensSID305 TricoreCANYesYesYes
NissanQashqai2.0 DCIBoschEDC16CP33K-Line/CANYesYesYes
NissanQashqaiEDC16BoschNozzle CodesK-Line/CANYesYesYes
NissanX-Trail2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

NissanX-Trail2.0 DCIBoschEDC16CP33K-Line/CANYesYesYes
NissanX-TrailEDC16BoschNozzle CodesK-Line/CANYesYesYes
OpelAgila1.0 16vBoschME1.5.5K-LineYesYesYes
OpelAgila1.0 16vBoschME7.6.H4K-LineYesYesYes
OpelAgila1.0iBoschME7.6.2CANYesYesYes
OpelAgila1.2 16vBoschME1.5.5K-LineYesYesYes
OpelAgila1.2 16vBoschME7.6.H4K-LineYesYesYes
OpelAgila1.2iBoschME7.6.2CANYesYesYes
OpelAgila1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
OpelAgila1.3 16v CDTiMarelliMJD 602K-LineYesYesYes
OpelAgila1.3 16v CDTIMarelliMJD 602-3CANYesYesYes
OpelAntara1.9 16V TD MJBoschEDC16C39CANYesYesYes
OpelAstra1.0 8vBoschM1.5.5K-LineNoNo

Checksum Button

OpelAstra1.2 16VBoschME1.5.5K-LineYesYesYes
OpelAstra1.2 16vBoschME7.6.H4K-LineYesYesYes
OpelAstra1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
OpelAstra1.3 16v CDTIMarelliMJD 602-3CANYesYesYes
OpelAstra1.4 16VDelcoMultecK-LineNoNo

Checksum Button

OpelAstra1.4iBoschME7.6.2CANYesYesYes
OpelAstra1.6 16VDelcoMultecK-LineNoNo

Checksum Button

OpelAstra2.0 16vBoschME1.5.5K-LineYesYesYes
OpelAstra2.0 16v GSI TurboBoschME1.5.5K-LineYesYesYes
OpelAstra2.0 VXRBoschME7.6.2CANYesYesYes
OpelAstra1.7 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelAstra2.0 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelAstra2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelAstra1.7 16V DTDelcoLVP4K-LineNoNo

Checksum Button

OpelAstra1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

OpelAstra1.8 16VSiemensSimtecK-LineNoNo

Checksum Button

OpelAstra2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

OpelAstra1.8 16VSiemensSimtec 70K-LineNoNo

Checksum Button

OpelAstra2.0 16VSiemensSimtec 70K-LineNoNo

Checksum Button

OpelAstra1.8 16VSiemensSimtec 90K-LineNoNo

Checksum Button

OpelAstra2.0 16VSiemensSimtec 90K-LineNoNo

Checksum Button

OpelAstra2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

OpelAstra1.3 16v CDTIMarelliMultijetK-LineYesYesYes
OpelAstra1.7 16V CDTIBoschEDC16C9CANYesYesYes
OpelAstra1.7 16V CDTIBoschEDC16C39CANYesYesYes
OpelAstra1.9 16V CDTIBoschEDC16C9CANYesYesYes
OpelAstra1.9 16V CDTIBoschEDC16C39CANYesYesYes
OpelAstra1.7 16V CDTI 110hp 2010 onDenso AX36CAN
YesYesYes
OpelAstra1.7 16V CDTI 125hp 2010 onDenso AX36CAN
YesYesYes
OpelAstra1.7 16V CDTI 110hp 2010Denso MFDXCAN
YesYesYes
OpelAstra1.7 16V CDTI 125hp 2010Denso MFDXCAN
YesYesYes
OpelAstra2.0 16V CDTIBoschPSG16CANYesYesYes
OpelCorsa1.0 8vBoschM1.5.5K-LineNoNo

Checksum Button

OpelCorsa1.0 12vBoschM1.5.5K-LineNoNo

Checksum Button

OpelCorsa1.0 12vBoschME1.5.5K-LineYesYesYes
OpelCorsa1.0 16vBoschME1.5.5K-LineYesYesYes
OpelCorsa1.0 16vBoschME7.6.H4K-LineYesYesYes
OpelCorsa1.0iBoschME7.6.2CANYesYesYes
OpelCorsa1.2 16vBoschME1.5.5K-LineYesYesYes
OpelCorsa1.2 16vBoschME7.6.H4K-LineYesYesYes
OpelCorsa1.2iBoschME7.6.2CANYesYesYes
OpelCorsa1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
OpelCorsa1.3 16v CDTiMarelliMJD 602K-LineYesYesYes
OpelCorsa1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
OpelCorsa1.4 16VDelcoMultecK-LineNoNo

Checksum Button

OpelCorsa1.4iBoschME7.6.2CANYesYesYes
OpelCorsa1.6 VXRBoschME7.6.2/3CANYesYesYes
OpelCorsa1.7 16V DTDelcoLVP4K-LineNoNo

Checksum Button

OpelCorsa1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

OpelCorsa1.7 16V DTIDensoLRDX HybridCANYesYesYes
OpelCorsa1.7 16V CDTI 110hp 2010Denso AP47CAN
YesYesYes
OpelCorsa1.7 16V CDTI 125hp 2010Denso AP47CAN
YesYesYes
OpelCombo1.3 16v CDTIMarelliMultijet 6JOK-LineYesYesYes
OpelCombo1.3 16v CDTiMarelliMJD 602K-LineYesYesYes
OpelCombo1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
OpelCombo1.7 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelCombo1.7 16V DTDelcoLVP4K-LineNoNo

Checksum Button

OpelCombo1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

OpelFrontera2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelMeriva1.0 16vBoschME1.5.5K-LineYesYesYes
OpelMeriva1.0 16vBoschME7.6.H4K-LineYesYesYes
OpelMeriva1.2 16vBoschME1.5.5K-LineYesYesYes
OpelMeriva1.2 16vBoschME7.6.H4K-LineYesYesYes
OpelMeriva1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
OpelMeriva1.3 16v CDTIMarelliMJD 602/3KLineYesYesYes
OpelMeriva1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
OpelMeriva1.4iBoschME7.6.2CANYesYesYes
OpelMeriva1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

OpelMeriva1.7 16V DTIDensoLRDX HybridCANYesYesYes
OpelMeriva1.7 16V CDTI 110hp 2010Denso AP47CAN
YesYesYes
OpelMeriva1.7 16V CDTI 125hp 2010Denso AP47CAN
YesYesYes
OpelMokka1.6 16v CDTIDelphiE87CANYesYesYes
OpelOmega2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

OpelOmega2.0 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelOmega2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelOmega2.5 V6BoschM2.8.3K-LineNoNo

Checksum Button

OpelSignum1.9 16V CDTIBoschEDC16C9CANYesYesYes
OpelSignum1.9 16V CDTIBoschEDC16C39CANYesYesYes
OpelSignum2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

OpelSignum2.0 16V CDTIBoschPSG16CANYesYesYes
OpelSignum2.2 16V CDTIBoschPSG16CANYesYesYes
OpelSintra2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelTigra1.0iBoschME7.6.2CANYesYesYes
OpelTigra1.2iBoschME7.6.2CANYesYesYes
OpelTigra1.4iBoschME7.6.2CANYesYesYes
OpelTigra1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
OpelTigra1.3 16v CDTIMarelliMJD 602/3KLineYesYesYes
OpelTigra1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
OpelVectra1.4 16VDelcoMultecK-LineNoNo

Checksum Button

OpelVectra1.6 16VDelcoMultecK-LineNoNo

Checksum Button

OpelVectra1.8 16VSiemensSimtecK-LineNoNo

Checksum Button

OpelVectra2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

OpelVectra1.8 16VSiemensSimtec 70K-LineNoNo

Checksum Button

OpelVectra2.0 16VSiemensSimtec 70K-LineNoNo

Checksum Button

OpelVectra1.8 16VSiemensSimtec 90K-LineNoNo

Checksum Button

OpelVectra2.0 16VSiemensSimtec 90K-LineNoNo

Checksum Button

OpelVectra1.8 16vBoschME1.5.5K-LineYesYesYes
OpelVectra1.8 16vBoschME7.6.H4K-LineYesYesYes
OpelVectra2.0 16vBoschME1.5.5K-LineYesYesYes
OpelVectra2.0 16vBoschME7.6.H4K-LineYesYesYes
OpelVectra1.8iBoschME7.6.2CANYesYesYes
OpelVectra2.0 VXRBoschME7.6.2/3CANYesYesYes
OpelVectra1.7 TDBoschEDC15MK-LineNoNo

Checksum Button

OpelVectra2.0 TDBoschEDC15MK-LineNoNo

Checksum Button

OpelVectra2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

OpelVectra2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

OpelVectra2.5 V6BoschM2.8.3K-LineNoNo

Checksum Button

OpelVectra1.9 16V CDTIBoschEDC16C9CANYesYesYes
OpelVectra1.9 16V CDTIBoschEDC16C39CANYesYesYes
OpelVectra2.0 16V CDTIBoschPSG16CANYesYesYes
OpelVectra2.2 16V CDTIBoschPSG16CANYesYesYes
OpelVectra2.8T 24VBoschME9.6CANYesYesYes
OpelVivaro1.9 TDBoschEDC15C2K-LineYesYes

Checksum Button

OpelVivaro2.0 TDCiBoschEDC16CP33K-Line/CANYesYesYes
OpelVivaro2.5 TDBoschEDC15C2K-LineYesYes

Checksum Button

OpelVivaroEDC16BoschNozzle CodesK-Line/CANYesYesYes
OpelVX2202.0 16v TurboBoschME1.5.5K-LineYesYesYes
OpelVX2202.0 16vBoschME7.6.H4K-LineYesYesYes
OpelVX2202.2LDelcoGM PTK-LineNoNo

Checksum Button

OpelZafira1.8 16VSiemensSimtecK-LineNoNo

Checksum Button

OpelZafira2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

OpelZafira1.8 16VSIemensSimtec 70K-LineNoNo

Checksum Button

OpelZafira2.0 16VSiemensSimtec 70K-LineNoNo

Checksum Button

OpelZafira1.8 16VSiemensSimtec 90K-LineNoNo

Checksum Button

OpelZafira2.0 16VSiemensSimtec 90K-LineNoNo

Checksum Button

OpelZafira2.0 16vBoschME1.5.5K-LineYesYesYes
OpelZafira2.0 16v TurboBoschME1.5.5K-LineYesYesYes
OpelZafira2.0 16vBoschME7.6.H4K-LineYesYesYes
OpelZafira2.0iBoschME7.6.2CANYesYesYes
OpelZafira2.0 TDBoschEDC15MK-LineNoNo

Checksum Button

OpelZafira1.9 16V CDTIBoschEDC16C9CANYesYesYes
OpelZafira1.9 16V CDTIBoschEDC16C39CANYesYesYes
OpelZafira1.7 16V CDTI 110hp 2010 onDenso AX36CAN
YesYesYes
OpelZafira1.7 16V CDTI 125hp 2010 onDenso AX36CAN
YesYesYes
OpelZafira1.7 16V CDTI 110hp 2010Denso AP47CAN
YesYesYes
OpelZafira1.7 16V CDTI 125hp 2010Denso AP47CAN
YesYesYes
OpelZafira2.0 16V CDTIBoschPSG16CANYesYesYes
OpelZafira2.2 16V CDTIBoschPSG16CANYesYesYes
OpelZafira2.8T 24VBoschME9.6CANYesYesYes
Peugeot1061.1LBoschMP7.4.4K-LineYesYes

Checksum Button

Peugeot1061.4L 16vMarelli6LPAK-LineYesYes

Checksum Button

Peugeot1061.6LBoschMP7.4.4K-LineYesYes

Checksum Button

Peugeot1071.4 HDISiemensSID 805/806CANYesYesYes
Peugeot10071.4 HDISiemensSID 804K-LineYesYesYes
Peugeot10071.4 HDISiemensSID 805/806CANYesYesYes
Peugeot2061.4L 16vMarelli6LPAK-LineYesYes

Checksum Button

Peugeot2061.6LBoschMP7.4.4K-LineYesYes

Checksum Button

Peugeot2061.4 HDIBoschEDC16C3K-LineYesYesYes
Peugeot2061.4 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot2061.6 HDIBoschEDC16C3K-LineYesYesYes
Peugeot2061.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot2062.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot2061.4 HDISiemensSID 804K-LineYesYesYes
Peugeot2062.0 HDISiemensSID 801/801AK-LineYesYesYes
Peugeot2061.6 16vBoschME7.4.5KLineYesYesYes
Peugeot2061.6 16vBoschME7.4.5CANYesYesYes
Peugeot2071.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot2071.6 TurboBoschMED17.4CANYesYesYes
Peugeot2071.6 16vBoschME7.4.5KLineYesYesYes
Peugeot2071.6 16vBoschME7.4.5CANYesYesYes
Peugeot207 RC1.6 TurboBoschMED17.4CANYesYesYes
Peugeot3061.4 HDIBoschEDC16C3K-LineYesYesYes
Peugeot3061.4 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot3061.6LBoschMP7.4.4K-LineYesYes

Checksum Button

Peugeot3061.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot3062.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot3062.0 HDISiemensSID 801/801AK-LineYesYesYes
Peugeot3071.4 HDIBoschEDC16C3K-LineYesYesYes
Peugeot3071.4 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot3071.6 HDIBoschEDC16C3K-LineYesYesYes
Peugeot3071.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot3072.0 HDISiemensSID801K-LineYesYesYes
Peugeot3072.0 HDISiemensSID801AK-LineYesYesYes
Peugeot3072.0 HDISiemensSID804K-LineYesYesYes
Peugeot3072.0 HDISiemensSID803AK-Line/CANYesYesYes
Peugeot3072.0 HDISiemensSID803K-LineYesYesYes
Peugeot3072.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot3072.0L 16vMarelli6LPAK-LineYesYes

Checksum Button

Peugeot3072.0 HDISiemensSID 801/801AK-LineYesYesYes
Peugeot3072.0 HDI 136HPDelphiDCM 3.4CANYesYesYes
Peugeot3071.6 16vBoschME7.4.5KLineYesYesYes
Peugeot3071.6 16vBoschME7.4.5CANYesYesYes
Peugeot3081.6 TurboBoschMED17.4CANYesYesYes
Peugeot3081.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot3082.0 HDI 136HPDelphiDCM 3.4CANYesYesYes
Peugeot3081.6 VTIBoschME7.4.5KLineYesYesYes
Peugeot3081.6 VTIBoschME7.4.5CANYesYesYes
Peugeot30081.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot30082.0 HDIDelphiDCM 3.5CANYesYesYes
Peugeot4061.6LBoschMP7.4.4K-LineYesYes

Checksum Button

Peugeot4062.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot4062.2 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot4062.0 HDISiemensSID 801/801AK-LineYesYesYes
Peugeot4071.6 HDIBoschEDC16C3K-LineYesYesYes
Peugeot4071.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot4072.0 HDISiemensSID803AK-Line/CANYesYesYes
Peugeot4072.0 HDISiemensSID803K-LineYesYesYes
Peugeot4072.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot4072.2 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot4072.0L 16vMarelli6LPAK-LineYesYes

Checksum Button

Peugeot4072.0 HDIDelphiDCM 3.5CANYesYesYes
Peugeot4072.0 HDI 136HPDelphiDCM 3.4CANYesYesYes
Peugeot5082.0 HDI 140HPDelphiDCM 3.4CANYesYesYes
Peugeot5082.0 HDI 165HPDelphiDCM 3.5CANYesYesYes
Peugeot50082.0 HDIDelphiDCM 3.5CANYesYesYes
Peugeot6072.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot6072.2 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot8062.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot8071.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
Peugeot8072.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot8072.0 TDSiemensSID803AK-Line/CANYesYesYes
Peugeot8072.2 HDIBoschEDC15C2K-LineYesYes

Checksum Button

Peugeot8072.2 TDBoschEDC16CP39K-Line/CANYesYesYes
PeugeotBipper1.3 HDIMarelliMultijet MJD8F2/3CANYesYesYes
PeugeotBoxer2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

PeugeotBoxer2.2 HDIBoschEDC15C2K-LineYesYes

Checksum Button

PeugeotBoxer2.8 HDIBoschEDC15C7K-LineYesYes

Checksum Button

PeugeotBoxer3.0 HDIBoschEDC16C39CANYesYesYes
PeugeotBoxer2.0 HDISiemensSID803AK-Line/CANYesYesYes
PeugeotExpert2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

PeugeotExpert2.0 HDISiemensSID803AK-Line/CANYesYesYes
PeugeotExpert2.0 HDIDelphiDCM 3.5CANYesYesYes
PeugeotPartner1.6 HDI FAPBoschEDC16C34K-Line/CANYesYesYes
PeugeotPartner2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

PeugeotPartner2.0 HDISiemensSID 801/801AK-LineYesYesYes
PeugeotPartner2.0 HDIDelphiDCM 3.5CANYesYesYes
PeugeotRanch2.0 HDIBoschEDC15C2K-LineYesYes

Checksum Button

PeugeotRanch2.0 HDISiemensSID 801/801AK-LineYesYesYes
PeugeotRanch2.0 HDISiemensSID803AK-Line/CANYesYesYes
PeugeotRCZ2.0 HDIDelphiDCM 3.5CANYesYesYes
PorscheBoxster2.5L (986)BoschM5.2.2K-LineYesYes

Checksum Button

PorscheBoxster2.7L (986)BoschME7.2K-LineYesYesYes
PorscheBoxster3.2L (986)BoschME7.2K-LineYesYesYes
PorscheCarrera3.4LBoschME7.2K-LineYesYesYes
PorscheCarrera3.6LBoschME7.2K-LineYesYesYes
PorscheCayman2.7LBoschME7.8.4K-LineYesYesYes
PorscheCayman3.4LBoschME7.8.4K-LineYesYesYes
Porsche9963.4LBoschM5.2.2K-LineYesYes

Checksum Button

Porsche9963.6L Twin Turbo GT2BoschM5.2.2K-LineYesYes

Checksum Button

Porsche9963.6L GT3BoschM5.2.2K-LineYesYes

Checksum Button

Porsche9963.4LBoschME7.8.4K-LineYesYesYes
Porsche9963.6LBoschME7.8.4K-LineYesYesYes
Porsche9963.6L Twin TurboBoschME7.8.4K-LineYesYesYes
Porsche9963.6L GT2 Twin TurboBoschME7.8.4K-LineYesYesYes
Porsche9963.6L GT3BoschME7.8.4K-LineYesYesYes
Porsche9973.6LBoschME7.8.4K-LineYesYesYes
Porsche9973.8LBoschME7.8.4K-LineYesYesYes
Porsche9973.8L GT3RSBoschME7.8.1K-Line/CANYesYesYes
Porsche9973.6L GT2 TurboBoschME7.8.1K-Line/CANYesYesYes
Porsche9973.6L Twin TurboBoschME7.8.1K-Line/CANYesYesYes
PorscheCayenne3.2L (995)BoschME7.2K-LineYesYesYes
PorscheCayenne3.2LBoschME7.1.1K-LineYesYes

Checksum Button

PorscheCayenne4.5LBoschME7.1.1K-LineYesYes

Checksum Button

PorscheCayenne4.5L TurboBoschME7.1.1K-LineYesYes

Checksum Button

PorscheCayenne4.5L Turbo SBoschME7.1.1K-LineYesYes

Checksum Button

RenaultAvantime2.2 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultCaptur1.2 16V TCESiemensEMS3150CANYesYesYes
RenaultClio1.2 16V TCESiemensEMS3150CANYesYesYes
RenaultClio1.5 Euro 3DelphiDDCRK-LineYesYesYes
RenaultClio1.5 Euro 4DelphiDCM 1.2K-Line/CANYesYesYes
RenaultClio1.5 DCiDelphiDCM 3.4CANYesYesYes
RenaultClio1.5 (106hp) DCiSiemensSID304CANYesYesYes
RenaultClioRS 1.6T 200hpSiemensEMS3150CANYesYesYes
RenaultClio2.0 16v 197hpSagemS3000K-Line/CANYesYesYes
RenaultClio2.0 16v 172/182hpSiemensSirius 34K-LineYesYes

Checksum Button

RenaultClio2.0 16v 172 Fase1SiemensSirius 32K-LineYesYes

Checksum Button

RenaultEspace1.9 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultEspace2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultEspace2.2 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultEspace2.2 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultFluence1.5 DCiDelphiDCM 3.4CANYesYesYes
RenaultKangoo1.5 Euro 3DelphiDDCRK-LineYesYes

Checksum Button

RenaultKangoo1.5 Euro 4DelphiDCM 1.2K-Line/CANYesYesYes
RenaultKangoo1.5 DCiDelphiDCM 3.4CANYesYesYes
RenaultKangoo1.5 (106hp) DCiSiemensSID304CANYesYesYes
RenaultKangoo1.9 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultKoleos2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultLaguna1.9 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultLaguna2.2 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultLaguna1.9 DCiBoschEDC16C3K-Line/CANYesYesYes
RenaultLaguna2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultLaguna2.2 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultLagunaEDC16BoschNozzle CodesK-Line/CANYesYesYes
RenaultMaster1.9 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultMaster2.2 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultMaster2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultMaster2.5 DCiBoschEDC15C13K-LineYesYes

Checksum Button

RenaultMasterEDC16BoschNozzle CodesK-Line/CANYesYesYes
RenaultMegane1.5 Euro 3DelphiDDCRK-LineYesYesYes
RenaultMegane1.5 Euro 4DelphiDCM 1.2K-Line/CANYesYesYes
RenaultMegane1.5 DCiDelphiDCM 3.4CANYesYesYes
RenaultMegane1.5 (106hp) DCiSiemensSID304CANYesYesYes
RenaultMegane1.5 DCiSiemensSID305 TricoreCANYesYesYes
RenaultMegane1.5 DCiSiemensSID307 TricoreCANYesYesYes
RenaultMegane1.9 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultMegane1.9 DCiBoschEDC16C3K-Line/CANYesYesYes
RenaultMegane2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultMeganeEDC16BoschNozzle CodesK-Line/CANYesYesYes
RenaultMegane2.0T 225hpSagemS3000K-Line/CANYesYesYes
RenaultMegane2.0T 250hpContinentalEMS3130CANYesYesYes
RenaultModus1.5 Euro 3DelphiDDCRK-LineYesYesYes
RenaultModus1.5 Euro 4DelphiDCM 1.2K-Line/CANYesYesYes
RenaultModus1.5 DCiDelphiDCM 3.4CANYesYesYes
RenaultScenic1.4 16vSagemS3000K-Line/CANYesYesYes
RenaultScenic1.6 16vSagemS3000K-Line/CANYesYesYes
RenaultScenic2.0 16vSagemS3000K-Line/CANYesYesYes
RenaultScenic1.5 Euro 3DelphiDDCRK-LineYesYesYes
RenaultScenic1.5 Euro 4DelphiDCM 1.2K-Line/CANYesYesYes
RenaultScenic1.5 DCiDelphiDCM 3.4CANYesYesYes
RenaultScenic1.5 (106hp) DCiSiemensSID304CANYesYesYes
RenaultScenic1.5 DCiSiemensSID305 TricoreCANYesYesYes
RenaultScenic1.5 DCiSiemensSID307 TricoreCANYesYesYes
RenaultScenic1.9 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultScenic1.9 DCiBoschEDC16C3K-Line/CANYesYesYes
RenaultScenic1.9 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultScenic2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultScenicEDC16BoschNozzle CodesK-Line/CANYesYesYes
RenaultTwingo1.6 Rs 16vSiemensSirius 32CANYesYes

Checksum Button

RenaultTraffic1.9 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultTraffic2.2 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultTraffic2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultTraffic2.5 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultTrafficEDC16BoschNozzle CodesK-Line/CANYesYesYes
RenaultVel Satis2.2 DCRBoschEDC15C2K-LineYesYes

Checksum Button

RenaultVel Satis2.2 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultVel Satis2.0 DCiBoschEDC16CP33K-Line/CANYesYesYes
RenaultVel SatisEDC16BoschNozzle CodesK-Line/CANYesYesYes
RoverRover 752.0 CDTBoschDDE4.0K-LineYesYesYes
RoverRover 75Tourer 2.0 CDTBoschDDE4.0K-LineYesYesYes
Saab932.2 16V TiDBoschEDC15MK-LineNoNo

Checksum Button

Saab931.9 16V TiDBoschEDC16C39CANYesYesYes
Saab931.8 TSaabTrionic-7CANYesYes

Checksum Button

Saab931.8 TSaabTrionic-8CANYesYesYes
Saab932.0 TSaabTrionic-7CANYesYes

Checksum Button

Saab932.0 TSaabTrionic-8CANYesYesYes
Saab932.3 TSaabTrionic-7CANYesYes

Checksum Button

Saab951.9 16V TiDBoschEDC16C39CANYesYesYes
SeatAlhambra1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SeatAlhambra1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SeatAlhambra1.8LBoschME7.1K-LineYesYesYes
SeatAlhambra1.8 TurboBoschME7.5K-LineYesYesYes
SeatAlhambra1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SeatAlhambra1.9 TDIBoschEDC16U1K-LineYesYesYes
SeatAlhambra2.0 TDIBoschEDC16U1K-LineYesYesYes
SeatAlhambra2.0 FSIBoschMED9.5.10K-Line/TP20YesYesYes
SeatAlhambraALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SeatAlhambraALL TFSIBoschMED17 XUDSYesYesYes
SeatAlhambraALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SeatAlhambraALL TDIBoschEDC17 XUDSYesYesYes
SeatAltea1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SeatAltea1.9 TDIBoschEDC16U1K-LineYesYesYes
SeatAltea2.0 TDIBoschEDC16U1K-LineYesYesYes
SeatAltea2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
SeatAltea2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
SeatAltea2.0 TDISiemensPPD 1.XK-Line/CAN TP2.0YesYesYes
SeatAlteaALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SeatAlteaALL TFSIBoschMED17 XUDSYesYesYes
SeatAlteaALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SeatAlteaALL TDIBoschEDC17 XUDSYesYesYes
SeatCordoba1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SeatCordoba1.8LBoschME7.1K-LineYesYesYes
SeatCordoba1.8 TurboBoschME7.5K-LineYesYesYes
SeatCordoba1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SeatExeoALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SeatExeoALL TFSIBoschMED17 XUDSYesYesYes
SeatExeoALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SeatExeoALL TDIBoschEDC17 XUDSYesYesYes
SeatIbiza1.4 TDIBoschEDC15K-LineYesYes

Checksum Button

SeatIbiza1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SeatIbiza1.9 SDIBoschEDC15K-LineYesYes

Checksum Button

SeatIbiza1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SeatIbiza1.8 TurboBoschME7.5K-LineYesYesYes
SeatIbiza1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SeatIbizaALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SeatIbizaALL TFSIBoschMED17 XUDSYesYesYes
SeatIbizaALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SeatIbizaALL TDIBoschEDC17 XKLineNoYesYes
SeatIbizaALL TDIBoschEDC17 XUDSYesYesYes
SeatLeon1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SeatLeon1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SeatLeon1.9 TDIBoschEDC16U1K-Line/TP20YesYesYes
SeatLeon2.0 TDIBoschEDC16U1K-Line/TP20YesYesYes
SeatLeon1.9 TDIBoschEDC16U31K-Line/TP20YesYesYes
SeatLeon2.0 TDIBoschEDC16U31K-Line/TP20YesYesYes
SeatLeon1.8LBoschME7.1K-LineYesYesYes
SeatLeon1.8 TurboBoschME7.5K-LineYesYesYes
SeatLeon2.0 20vBoschME7.5K-LineYesYesYes
SeatLeon2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
SeatLeon2.0 TFSIBoschMED9.1TP2.0YesYesYes
SeatLeon2.0 TDISiemensPPD 1.XK-Line/CAN TP2.0YesYesYes
SeatLeon1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SeatLeon2.0LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SeatLeonALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SeatLeonALL TFSIBoschMED17 XUDSYesYesYes
SeatLeonALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SeatLeonALL TDIBoschEDC17 XKLineNoYesYes
SeatLeonALL TDIBoschEDC17 XUDSYesYesYes
SeatToledo1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SeatToledo1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SeatToledo1.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
SeatToledo2.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
SeatToledo1.9 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
SeatToledo2.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
SeatToledo1.8LBoschME7.1K-LineYesYesYes
SeatToledo2.3LBoschME7.1K-LineYesYesYes
SeatToledo1.8 TurboBoschME7.5K-LineYesYesYes
SeatToledo2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
SeatToledo1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SeatToledo2.3LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SkodaFabia1.4 TDIBoschEDC15K-LineYesYes

Checksum Button

SkodaFabia1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SkodaFabia1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SkodaFabia1.9 TDIBoschEDC16U31K-Line/TP20YesYesYes
SkodaFabiaALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SkodaFabiaALL TFSIBoschMED17 XUDSYesYes

Checksum Button

SkodaFabiaALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SkodaFabiaALL TDIBoschEDC17 XKLineNoYesYes
SkodaFabiaALL TDIBoschEDC17 XUDSYesYesYes
SkodaOctavia1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SkodaOctavia1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SkodaOctavia1.9 TDIBoschEDC16U1K-Line/TP20YesYesYes
SkodaOctavia2.0 TDIBoschEDC16U1K-Line/TP20YesYesYes
SkodaOctavia1.9 TDIBoschEDC16U31K-Line/TP20YesYesYes
SkodaOctavia2.0 TDIBoschEDC16U31K-Line/TP20YesYesYes
SkodaOctavia1.8 TurboBoschME7.5K-LineYesYesYes
SkodaOctavia1.8 TurboBoschME7.5K-LineYesYesYes
SkodaOctavia1.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
SkodaOctavia2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
SkodaOctavia2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
SkodaOctavia1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SkodaOctavia2.0 TDISiemensPPD 1.XK-Line/TP20YesYesYes
SkodaOctavia1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

SkodaOctaviaALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SkodaOctaviaALL TFSIBoschMED17 XUDSYesYesYes
SkodaOctaviaALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SkodaOctaviaALL TDIBoschEDC17 XUDSYesYesYes
SkodaRoomster1.4 TDIBoschEDC15K-LineYesYes

Checksum Button

SkodaRoomster1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SkodaRoomster1.9 TDIBoschEDC16U1K-LineYesYesYes
SkodaRoomster2.0 TDISiemensPPD 1.XK-Line/CAN TP2.0YesYesYes
SkodaRoomsterALL TFSIBoschMED17 XK-LineYesYesYes
SkodaRoomsterALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SkodaRoomsterALL TFSIBoschMED17 XUDSYesYesYes
SkodaRoomsterALL TDIBoschEDC17 XK-LineYesYesYes
SkodaRoomsterALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SkodaRoomsterALL TDIBoschEDC17 XUDSYesYesYes
SkodaSuperb1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SkodaSuperb1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

SkodaSuperb2.5 TDIBoschEDC15K-LineYesYes

Checksum Button

SkodaSuperb2.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
SkodaSuperb1.9 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
SkodaSuperb2.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
SkodaSuperb1.8 TurboBoschME7.5K-LineYesYesYes
SkodaSuperb1.8 TurboBoschME7.5K-LineYesYesYes
SkodaSuperbALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SkodaSuperbALL TFSIBoschMED17 XUDSYesYesYes
SkodaSuperbALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SkodaSuperbALL TDIBoschEDC17 XUDSYesYesYes
SkodaYeti1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
SkodaYetiALL TFSIBoschMED17 XCAN TP2.0YesYesYes
SkodaYetiALL TFSIBoschMED17 XUDSYesYesYes
SkodaYetiALL TDIBoschEDC17 XCAN TP2.0YesYesYes
SkodaYetiALL TDIBoschEDC17 XUDSYesYesYes
SubaruForester2.0L TD 150hpDensoZN4DCANNoNoYes
SubaruForester2.0L TD 150hpDensoPF3DCANNoNoYes
SubaruImpreza2.0L TD 150hpDensoZN4DCANNoNoYes
SubaruImpreza2.0L TD 150hpDensoPF3DCANNoNoYes
SuzukiGran Vitara2.0 CDIBoschEDC15C2K-LineYesYes

Checksum Button

SuzukiIgnis1.3 16v DDiSMarelliMJD 6JOK-LineYesYesYes
SuzukiIgnis1.3 16v DDisMarelliMJD 602/3CANYesYesYes
SuzukiSx41.6 DDisBoschEDC16C39K-LineYesYesYes
SuzukiSwift1.3 16v DDiSMarelliMJD 6JOK-LineYesYesYes
SuzukiSwift1.3 16v DDiSMarelliMJD 602/3CANYesYesYes
SuzukiVitara1.9 CDISiemensSID 801K-LineYesYesYes
SuzukiWagon-R1.3 16v DDiSMarelliMJD 6JOK-LineYesYesYes
SuzukiWagon-R1.3 16v DDiSMarelliMJD 602/3CANYesYesYes
VauxhallAgila1.0 16vBoschME1.5.5K-LineYesYesYes
VauxhallAgila1.0 16vBoschME7.6.H4K-LineYesYesYes
VauxhallAgila1.0iBoschME7.6.2CANYesYesYes
VauxhallAgila1.2 16vBoschME1.5.5K-LineYesYesYes
VauxhallAgila1.2 16vBoschME7.6.H4K-LineYesYesYes
VauxhallAgila1.2iBoschME7.6.2CANYesYesYes
VauxhallAgila1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
VauxhallAgila1.3 16v CDTiMarelliMJD 602K-LineYesYesYes
VauxhallAgila1.3 16v CDTIMarelliMJD 602-3CANYesYesYes
VauxhallAntara1.9 16V TD MJBoschEDC16C39CANYesYesYes
VauxhallAstra1.0 8vBoschM1.5.5K-LineNoNo

Checksum Button

VauxhallAstra1.2 16VBoschME1.5.5K-LineYesYesYes
VauxhallAstra1.2 16vBoschME7.6.H4K-LineYesYesYes
VauxhallAstra1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
VauxhallAstra1.3 16v CDTIMarelliMJD 602-3CANYesYesYes
VauxhallAstra1.4 16VDelcoMultecK-LineNoNo

Checksum Button

VauxhallAstra1.4iBoschME7.6.2CANYesYesYes
VauxhallAstra1.6 16VDelcoMultecK-LineNoNo

Checksum Button

VauxhallAstra2.0 16vBoschME1.5.5K-LineYesYesYes
VauxhallAstra2.0 16v GSI TurboBoschME1.5.5K-LineYesYesYes
VauxhallAstra2.0 VXRBoschME7.6.2CANYesYesYes
VauxhallAstra1.7 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallAstra2.0 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallAstra2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallAstra1.7 16V DTDelcoLVP4K-LineNoNo

Checksum Button

VauxhallAstra1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

VauxhallAstra1.8 16VSiemensSimtecK-LineNoNo

Checksum Button

VauxhallAstra2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

VauxhallAstra1.8 16VSiemensSimtec 70K-LineNoNo

Checksum Button

VauxhallAstra2.0 16VSiemensSimtec 70K-LineNoNo

Checksum Button

VauxhallAstra1.8 16VSiemensSimtec 90K-LineNoNo

Checksum Button

VauxhallAstra2.0 16VSiemensSimtec 90K-LineNoNo

Checksum Button

VauxhallAstra2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

VauxhallAstra1.3 16v CDTIMarelliMultijetK-LineYesYesYes
VauxhallAstra1.7 16V CDTIBoschEDC16C9CANYesYesYes
VauxhallAstra1.7 16V CDTIBoschEDC16C39CANYesYesYes
VauxhallAstra1.9 16V CDTIBoschEDC16C9CANYesYesYes
VauxhallAstra1.9 16V CDTIBoschEDC16C39CANYesYesYes
VauxhallAstra1.7 16V CDTI 110hp 2010 onDenso AX36CAN
YesYesYes
VauxhallAstra1.7 16V CDTI 125hp 2010 onDenso AX36CAN
YesYesYes
VauxhallAstra1.7 16V CDTI 110hp 2010Denso MFDXCAN
YesYesYes
VauxhallAstra1.7 16V CDTI 125hp 2010Denso MFDXCAN
YesYesYes
VauxhallAstra2.0 16V CDTIBoschPSG16CANYesYesYes
VauxhallCorsa1.0 8vBoschM1.5.5K-LineNoNo

Checksum Button

VauxhallCorsa1.0 12vBoschM1.5.5K-LineNoNo

Checksum Button

VauxhallCorsa1.0 12vBoschME1.5.5K-LineYesYesYes
VauxhallCorsa1.0 16vBoschME1.5.5K-LineYesYesYes
VauxhallCorsa1.0 16vBoschME7.6.H4K-LineYesYesYes
VauxhallCorsa1.0iBoschME7.6.2CANYesYesYes
VauxhallCorsa1.2 16vBoschME1.5.5K-LineYesYesYes
VauxhallCorsa1.2 16vBoschME7.6.H4K-LineYesYesYes
VauxhallCorsa1.2iBoschME7.6.2CANYesYesYes
VauxhallCorsa1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
VauxhallCorsa1.3 16v CDTiMarelliMJD 602K-LineYesYesYes
VauxhallCorsa1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
VauxhallCorsa1.4 16VDelcoMultecK-LineNoNo

Checksum Button

VauxhallCorsa1.4iBoschME7.6.2CANYesYesYes
VauxhallCorsa1.6 VXRBoschME7.6.2/3CANYesYesYes
VauxhallCorsa1.7 16V DTDelcoLVP4K-LineNoNo

Checksum Button

VauxhallCorsa1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

VauxhallCorsa1.7 16V DTIDensoLRDX HybridCANYesYesYes
VauxhallCorsa1.7 16V CDTI 110hp 2010Denso AP47CAN
YesYesYes
VauxhallCorsa1.7 16V CDTI 125hp 2010Denso AP47CAN
YesYesYes
VauxhallCombo1.3 16v CDTIMarelliMultijet 6JOK-LineYesYesYes
VauxhallCombo1.3 16v CDTiMarelliMJD 602K-LineYesYesYes
VauxhallCombo1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
VauxhallCombo1.7 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallCombo1.7 16V DTDelcoLVP4K-LineNoNo

Checksum Button

VauxhallCombo1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

VauxhallFrontera2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallMeriva1.0 16vBoschME1.5.5K-LineYesYesYes
VauxhallMeriva1.0 16vBoschME7.6.H4K-LineYesYesYes
VauxhallMeriva1.2 16vBoschME1.5.5K-LineYesYesYes
VauxhallMeriva1.2 16vBoschME7.6.H4K-LineYesYesYes
VauxhallMeriva1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
VauxhallMeriva1.3 16v CDTIMarelliMJD 602/3KLineYesYesYes
VauxhallMeriva1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
VauxhallMeriva1.4iBoschME7.6.2CANYesYesYes
VauxhallMeriva1.7 16V DTIDelcoLVP11K-LineNoNo

Checksum Button

VauxhallMeriva1.7 16V DTIDensoLRDX HybridCANYesYesYes
VauxhallMeriva1.7 16V CDTI 110hp 2010Denso AP47CAN
YesYesYes
VauxhallMeriva1.7 16V CDTI 125hp 2010Denso AP47CAN
YesYesYes
VauxhallMokka1.6 16v CDTIDelphiE87CANYesYesYes
VauxhallOmega2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

VauxhallOmega2.0 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallOmega2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallOmega2.5 V6BoschM2.8.3K-LineNoNo

Checksum Button

VauxhallSignum1.9 16V CDTIBoschEDC16C9CANYesYesYes
VauxhallSignum1.9 16V CDTIBoschEDC16C39CANYesYesYes
VauxhallSignum2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

VauxhallSignum2.0 16V CDTIBoschPSG16CANYesYesYes
VauxhallSignum2.2 16V CDTIBoschPSG16CANYesYesYes
VauxhallSintra2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallTigra1.0iBoschME7.6.2CANYesYesYes
VauxhallTigra1.2iBoschME7.6.2CANYesYesYes
VauxhallTigra1.4iBoschME7.6.2CANYesYesYes
VauxhallTigra1.3 16v CDTIMarelliMJD 6JOK-LineYesYesYes
VauxhallTigra1.3 16v CDTIMarelliMJD 602/3KLineYesYesYes
VauxhallTigra1.3 16v CDTIMarelliMJD 602/3CANYesYesYes
VauxhallVectra1.4 16VDelcoMultecK-LineNoNo

Checksum Button

VauxhallVectra1.6 16VDelcoMultecK-LineNoNo

Checksum Button

VauxhallVectra1.8 16VSiemensSimtecK-LineNoNo

Checksum Button

VauxhallVectra2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

VauxhallVectra1.8 16VSiemensSimtec 70K-LineNoNo

Checksum Button

VauxhallVectra2.0 16VSiemensSimtec 70K-LineNoNo

Checksum Button

VauxhallVectra1.8 16VSiemensSimtec 90K-LineNoNo

Checksum Button

VauxhallVectra2.0 16VSiemensSimtec 90K-LineNoNo

Checksum Button

VauxhallVectra1.8 16vBoschME1.5.5K-LineYesYesYes
VauxhallVectra1.8 16vBoschME7.6.H4K-LineYesYesYes
VauxhallVectra2.0 16vBoschME1.5.5K-LineYesYesYes
VauxhallVectra2.0 16vBoschME7.6.H4K-LineYesYesYes
VauxhallVectra1.8iBoschME7.6.2CANYesYesYes
VauxhallVectra2.0 VXRBoschME7.6.2/3CANYesYesYes
VauxhallVectra1.7 TDBoschEDC15MK-LineNoNo

Checksum Button

VauxhallVectra2.0 TDBoschEDC15MK-LineNoNo

Checksum Button

VauxhallVectra2.2 16V DTIBoschEDC15MK-LineNoNo

Checksum Button

VauxhallVectra2.2 SRIDelcoGM PTK-LineNoNo

Checksum Button

VauxhallVectra2.5 V6BoschM2.8.3K-LineNoNo

Checksum Button

VauxhallVectra1.9 16V CDTIBoschEDC16C9CANYesYesYes
VauxhallVectra1.9 16V CDTIBoschEDC16C39CANYesYesYes
VauxhallVectra2.0 16V CDTIBoschPSG16CANYesYesYes
VauxhallVectra2.2 16V CDTIBoschPSG16CANYesYesYes
VauxhallVectra2.8T 24VBoschME9.6CANYesYesYes
VauxhallVivaro1.9 TDBoschEDC15C2K-LineYesYes

Checksum Button

VauxhallVivaro2.0 TDCiBoschEDC16CP33K-Line/CANYesYesYes
VauxhallVivaro2.5 TDBoschEDC15C2K-LineYesYes

Checksum Button

VauxhallVivaroEDC16BoschNozzle CodesK-Line/CANYesYesYes
VauxhallVX2202.0 16v TurboBoschME1.5.5K-LineYesYesYes
VauxhallVX2202.0 16vBoschME7.6.H4K-LineYesYesYes
VauxhallVX2202.2LDelcoGM PTK-LineNoNo

Checksum Button

VauxhallZafira1.8 16VSiemensSimtecK-LineNoNo

Checksum Button

VauxhallZafira2.0 16VSiemensSimtecK-LineNoNo

Checksum Button

VauxhallZafira1.8 16VSIemensSimtec 70K-LineNoNo

Checksum Button

VauxhallZafira2.0 16VSiemensSimtec 70K-LineNoNo

Checksum Button

VauxhallZafira1.8 16VSiemensSimtec 90K-LineNoNo

Checksum Button

VauxhallZafira2.0 16VSiemensSimtec 90K-LineNoNo

Checksum Button

VauxhallZafira2.0 16vBoschME1.5.5K-LineYesYesYes
VauxhallZafira2.0 16v TurboBoschME1.5.5K-LineYesYesYes
VauxhallZafira2.0 16vBoschME7.6.H4K-LineYesYesYes
VauxhallZafira2.0iBoschME7.6.2CANYesYesYes
VauxhallZafira2.0 TDBoschEDC15MK-LineNoNo

Checksum Button

VauxhallZafira1.9 16V CDTIBoschEDC16C9CANYesYesYes
VauxhallZafira1.9 16V CDTIBoschEDC16C39CANYesYesYes
VauxhallZafira1.7 16V CDTI 110hp 2010 onDenso AX36CAN
YesYesYes
VauxhallZafira1.7 16V CDTI 125hp 2010 onDenso AX36CAN
YesYesYes
VauxhallZafira1.7 16V CDTI 110hp 2010Denso AP47CAN
YesYesYes
VauxhallZafira1.7 16V CDTI 125hp 2010Denso AP47CAN
YesYesYes
VauxhallZafira2.0 16V CDTIBoschPSG16CANYesYesYes
VauxhallZafira2.2 16V CDTIBoschPSG16CANYesYesYes
VauxhallZafira2.8T 24VBoschME9.6CANYesYesYes
VolkswagenBora1.4LBoschME7.1K-LineYesYesYes
VolkswagenBora1.6 FSIBoschMED7.5.11K-LineYesYesYes
VolkswagenBora1.8LBoschME7.1K-LineYesYesYes
VolkswagenBora1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenBora1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenBora1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenBora2.3 V5BoschME7.1K-LineYesYesYes
VolkswagenBora1.8LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenBora1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenCaddy1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
VolkswagenCaddy1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenCaddy1.9 SDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenCaddy2.0 SDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenCaddy1.9 SDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenCaddy2.0 SDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenCaddy1.9 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenCaddy2.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenCorradoVR6BoschM5.92K-LineNoYes

Checksum Button

VolkswagenCrafter2.5 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenCrafter2.5 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenCrafter2.5 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenCrafter2.5 TDI CRBoschEDC16CP34-4.4CAN TP2.0YesYesYes
VolkswagenCrafter2.7 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenCrafter3.0 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenCrafter2.5LBoschME7.1.1CAN TP2.0YesYesYes
VolkswagenEos1.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenEos2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenEos2.0 TDI PDBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenEos2.0 TDI PDBoschEDC16U31K-Line/TP.20YesYesYes
VolkswagenEos2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
VolkswagenEosALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenEosALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenEosALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenEosALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenGolf1.4LBoschME7.5K-LineYesYesYes
VolkswagenGolf1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenGolf1.4 TSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenGolf1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
VolkswagenGolf1.9 SDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenGolf1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenGolf1.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenGolf1.9 TDI PDBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenGolf2.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenGolf2.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenGolf2.0 TDI PDBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenGolf1.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenGolf1.8LBoschME7.1K-LineYesYesYes
VolkswagenGolf1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenGolf1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenGolf2.0LBoschME7.5K-LineYesYesYes
VolkswagenGolf2.0LBoschME7.5K-LineYesYesYes
VolkswagenGolf2.0LBoschME7.1.1K-LineYesYesYes
VolkswagenGolf2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenGolf2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
VolkswagenGolf2.3 V5BoschME7.1K-LineYesYes

Checksum Button

VolkswagenGolf2.8L 12vBoschME7.1.1K-LineYesYesYes
VolkswagenGolf2.8L 24vBoschME7.1.1K-LineYesYesYes
VolkswagenGolf3.2LBoschME7.1.1K-LineYesYesYes
VolkswagenGolf3.2LBoschME7.1.1CAN TP2.0YesYesYes
VolkswagenGolf1.8LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenGolfVR6BoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenGolf2.0LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenGolf2.3LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenGolf1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenGolf2.0 TDISiemensPPD 1.XK-Line/TP20YesYesYes
VolkswagenGolfALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenGolfALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenGolfALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenGolfALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenJetta1.4LBoschME7.5K-LineYesYesYes
VolkswagenJetta1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenJetta1.4 TSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenJetta1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
VolkswagenJetta1.9 SDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenJetta1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenJetta1.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenJetta1.9 TDI PDBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenJetta2.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenJetta2.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenJetta2.0 TDI PDBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenJetta1.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenJetta1.8LBoschME7.1K-LineYesYesYes
VolkswagenJetta1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenJetta1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenJetta2.0LBoschME7.5K-LineYesYesYes
VolkswagenJetta2.0LBoschME7.5K-LineYesYesYes
VolkswagenJetta2.0LBoschME7.1.1K-LineYesYesYes
VolkswagenJetta2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenJetta2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
VolkswagenJetta2.3 V5BoschME7.1K-LineYesYesYes
VolkswagenJetta2.8L 12vBoschME7.1.1K-LineYesYesYes
VolkswagenJetta2.8L 24vBoschME7.1.1K-LineYesYesYes
VolkswagenJetta3.2LBoschME7.1.1K-LineYesYesYes
VolkswagenJetta3.2LBoschME7.1.1CAN TP2.0YesYesYes
VolkswagenJetta1.8LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenJettaVR6BoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenJetta2.0LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenJetta2.3LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenJetta1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenJetta2.0 TDISiemensPPD 1.XK-Line/TP20YesYesYes
VolkswagenJettaALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenJettaALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenJettaALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenJettaALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenLT352.5 TDIBoschEDC15VM+K-LineYesYes

Checksum Button

VolkswagenLupo1.2 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenLupo1.4 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenNew Beetle1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenNew Beetle1.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenNew Beetle1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenNew Beetle1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenNew Beetle2.0LBoschME7.5K-LineYesYesYes
VolkswagenNew Beetle2.0L TurboBoschME7.5K-LineYesYesYes
VolkswagenNew Beetle2.0LBoschME7.1.1K-LineYesYesYes
VolkswagenNew Beetle2.3 V5BoschME7.1K-LineYesYesYes
VolkswagenNew Beetle2.5LBoschME7.5K-LineYesYesYes
VolkswagenNew Beetle2.9LBoschME7.1.1K-LineYesYesYes
VolkswagenNew Beetle3.2L RSiBoschME7.1.1K-LineYesYesYes
VolkswagenNew Beetle1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenNew Beetle2.0LBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenPassat1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
VolkswagenPassat1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenPassat1.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenPassat1.9 TDI PDBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenPassat2.5 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenPassat2.0 TDIBoschEDC16U1K-Line/TP20.YesYesYes
VolkswagenPassat2.0 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenPassat3.0 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
VolkswagenPassat1.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenPassat1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenPassat1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenPassat2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenPassat2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
VolkswagenPassat2.3 V5BoschME7.1K-LineYesYesYes
VolkswagenPassat2.8L V6BoschME7.1K-LineYesYesYes
VolkswagenPassat4.0L W8BoschME7.1.1K-LineYesYesYes
VolkswagenPassat3.6L V6 FSIBoschMED9.1CAN TP2.0YesYesYes
VolkswagenPassat1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenPassat2.0 TDISiemensPPD 1.XK-Line/CAN TP2.0YesYesYes
VolkswagenPassatALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenPassatALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenPassatALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenPassatALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenPhaeton3.0 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
VolkswagenPhaeton3.2LBoschME7.1.1K-LineYesYesYes
VolkswagenPhaeton4.2LBoschME7.1.1K-LineYesYesYes
VolkswagenPhaeton5.0 TDI V10BoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenPhaeton5.0 TDI V10BoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenPhaeton5.0 TDI V10BoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenPhaeton5.0 TDI V10BoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenPhaetonALL TFSIBoschMED17 XCAN TP2.0 ECU 1YesYesYes
VolkswagenPhaetonALL TFSIBoschMED17 XCAN TP2.0 ECU 2YesYesYes
VolkswagenPhaetonALL TFSIBoschMED17 XUDS ECU 1YesYesYes
VolkswagenPhaetonALL TFSIBoschMED17 XUDS ECU 2YesYesYes
VolkswagenPhaetonALL TDIBoschEDC17 XCAN TP2.0 ECU 1YesYesYes
VolkswagenPhaetonALL TDIBoschEDC17 XCAN TP2.0 ECU 2YesYesYes
VolkswagenPhaetonALL TDIBoschEDC17 XKLineYesYesYes
VolkswagenPhaetonALL TDIBoschEDC17 XUDS ECU 1YesYesYes
VolkswagenPhaetonALL TDIBoschEDC17 XUDS ECU 2YesYesYes
VolkswagenPolo1.2 TDIDelphiDCM 3.7CANYesYesYes
VolkswagenPolo1.4 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenPolo1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
VolkswagenPolo1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenPolo1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenPolo1.9 SDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenPolo1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenPolo1.4 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenPolo1.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenPoloALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenPoloALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenPoloALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenPoloALL TDIBoschEDC17 XKLineNoYesYes
VolkswagenPoloALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenRabbit1.4LBoschME7.5K-LineYesYesYes
VolkswagenRabbit1.9 SDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenRabbit1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenRabbit1.9 TDIBoschEDC16U1K-Line/TP20YesYesYes
VolkswagenRabbit1.9 TDI PDBoschEDC16U34K-Line/TP20YesYesYes
VolkswagenRabbit2.0 TDIBoschEDC16U1K-Line/TP20YesYesYes
VolkswagenRabbit2.0 TDI PDBoschEDC16U34K-Line/TP20YesYesYes
VolkswagenRabbit1.6 FSIBoschMED9.5.10K-Line/TP20YesYesYes
VolkswagenRabbit1.8LBoschME7.1K-LineYesYesYes
VolkswagenRabbit1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenRabbit1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenRabbit2.0LBoschME7.5K-LineYesYesYes
VolkswagenRabbit2.0LBoschME7.5K-LineYesYesYes
VolkswagenRabbit2.0LBoschME7.1.1K-LineYesYesYes
VolkswagenRabbit2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenRabbit2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
VolkswagenRabbit2.3 V5BoschME7.1K-LineYesYesYes
VolkswagenRabbit2.9LBoschME7.1.1K-LineYesYesYes
VolkswagenRabbit2.8L 12vBoschME7.1.1K-LineYesYesYes
VolkswagenRabbit2.8L 24vBoschME7.1.1K-LineYesYesYes
VolkswagenRabbit3.2LBoschME7.1.1K-LineYesYesYes
VolkswagenScirocco1.4 TSIBoschMED9.5.10K-Line/TP2.YesYesYes
VolkswagenScirocco2.0 TFSI TurboBoschMED9.1CAN TP2.0YesYesYes
VolkswagenSciroccoALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenSciroccoALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenSciroccoALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenSciroccoALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenSharan1.9 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenSharan2.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenSharan2.0 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenSharan2.0 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenSharan1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenSharan1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenSharan1.8TBoschM5.92/M3.8.3K-LineNoYes

Checksum Button

VolkswagenT4 Bus2.5 TDIBoschEDC15K-LineYesYes

Checksum Button

VolkswagenT5 Bus1.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenT5 Bus1.9 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenT5 Bus1.9 TDIBoschEDC16U31K-Line/CAN TP2.0YesYesYes
VolkswagenT5 Bus2.5 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenT5 Bus2.5 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenT5 Bus2.5 TDIBoschEDC16U31-3.1K-Line/CAN TP2.0YesYesYes
VolkswagenT5 Bus2.5 TDI CRBoschEDC16CP34-4.4CAN TP2.0YesYesYes
VolkswagenTiguan1.4 TSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenTiguan1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
VolkswagenTiguan1.9 TDI PDBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenTiguan2.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenTiguan2.0 TDI PDBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenTiguan2.0 TFSIBoschMED9.1CAN TP2.0YesYesYes
VolkswagenTiguanALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenTiguanALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenTiguanALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenTiguanALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenTouran1.6 TDISiemensSimos Pcr2.xUDSYesYesYes
VolkswagenTouran1.9 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenTouran1.9 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenTouran2.0 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenTouran2.0 TDIBoschEDC16U34K-Line/CAN TP2.0YesYesYes
VolkswagenTouran1.6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenTouran1.8 TurboBoschME7.5K-LineYesYesYes
VolkswagenTouran2.0 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenTouran2.0 TDISiemensPPD 1.XK-Line/CAN TP2.0YesYesYes
VolkswagenTouranALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenTouranALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenTouranALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenTouranALL TDIBoschEDC17 XUDSYesYesYes
VolkswagenTouareg2.5 TDIBoschEDC16U1K-Line/CAN TP2.0YesYesYes
VolkswagenTouareg3.0 TDIBoschEDC16CPK-Line/CAN TP2.0YesYesYes
VolkswagenTouareg3.2LBoschME7.1.1K-LineYesYesYes
VolkswagenTouareg3.6L V6 FSIBoschMED9.5.10K-Line/CAN TP2.0YesYesYes
VolkswagenTouareg4.2L V8BoschME7.1.1K-LineYesYesYes
VolkswagenTouareg5.0 TDI V10BoschEDC16U1K-Line/TP2.0 ECU 1YesYesYes
VolkswagenTouareg5.0 TDI V10BoschEDC16U1K-Line/TP2.0 ECU 2YesYesYes
VolkswagenTouareg5.0 TDI V10BoschEDC16U31K-Line/TP2.0 ECU 1YesYesYes
VolkswagenTouareg5.0 TDI V10BoschEDC16U31K-Line/TP2.0 ECU 2YesYesYes
VolkswagenTouaregALL TDIBoschEDC17 XCAN TP2.0 ECU 1YesYesYes
VolkswagenTouaregALL TDIBoschEDC17 XCAN TP2.0 ECU 2YesYesYes
VolkswagenTouaregALL TDIBoschEDC17 XKLineYesYesYes
VolkswagenTouaregALL TDIBoschEDC17 XUDS ECU 1YesYesYes
VolkswagenTouaregALL TDIBoschEDC17 XUDS ECU 2YesYesYes
VolkswagenVentoALL TFSIBoschMED17 XCAN TP2.0YesYesYes
VolkswagenVentoALL TFSIBoschMED17 XUDSYesYesYes
VolkswagenVentoALL TDIBoschEDC17 XCAN TP2.0YesYesYes
VolkswagenVentoALL TDIBoschEDC17 XUDSYesYesYes
Volkswagen MarineTDI 100-52.5 TDIBoschEDC15K-LineYesYes

Checksum Button

Volkswagen MarineTDI 120-52.5 TDIBoschEDC15K-LineYesYes

Checksum Button

Volkswagen MarineTDI 150-52.5 TDIBoschEDC15K-LineYesYes

Checksum Button

Volkswagen MarineTDI 165-52.5 TDIBoschEDC15K-LineYesYes

Checksum Button

VolvoC301.6 D < 2008BoschEDC16C34CANYesYesYes
VolvoC302.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoC302.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoC302.4 20v 2006Denso170hpCANYesYes

Checksum Button

VolvoC302.5T < 2008BoschME9.0CANYesYesYes
VolvoC302.5T 2008 >BoschME9.0UDSYesYesYes
VolvoC702.4 D (D5) < 2008BoschEDC15C11-4K-LineYesYesYes
VolvoC702.4 D (D5) < 2008BoschEDC15C11-4CAN 250kYesYesYes
VolvoC702.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoC702.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoC702.0TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoC702.3TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoC702.5TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoC702.5T < 2008BoschME9.0CANYesYesYes
VolvoC702.5T 2008 >BoschME9.0UDSYesYesYes
VolvoS401.6 D < 2008BoschEDC16C34CANYesYesYes
VolvoS401.6 DBoschEDC16C34KLineYesYesYes
VolvoS401.9 CDIBoschEDC15C3K-LineYesYes

Checksum Button

VolvoS401.9 DBoschEDC15C11-4CAN 250kYesYesYes
VolvoS402.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoS402.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoS602.4 D (D5)BoschEDC15C11-4K-LineYesYesYes
VolvoS602.4 D (D5)BoschEDC15C11-4CAN 250kYesYesYes
VolvoS602.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoS602.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoS602.0TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS602.3TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS602.4TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS602.5TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS602.5T < 2008BoschME9.0CANYesYesYes
VolvoS602.5T 2008 >BoschME9.0UDSYesYesYes
VolvoS602.4 20v 2000Denso140 - 170hpCANYesYes

Checksum Button

VolvoS802.4 D (D5)BoschEDC15C11-4K-LineYesYesYes
VolvoS802.4 D (D5)BoschEDC15C11-4CAN 250kYesYesYes
VolvoS802.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoS802.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoS802.0TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS802.4TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS802.5TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS802.8TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS803.0TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoS803.2 V6 2006Denso175hpCANYesYes

Checksum Button

VolvoS804.4 V8 2008Denso229hpCANYesYes

Checksum Button

VolvoV401.9 CDIBoschEDC15C3K-LineYesYes

Checksum Button

VolvoV501.6 D < 2008BoschEDC16C34CANYesYesYes
VolvoV502.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoV502.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoV502.5TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoV502.5T < 2008BoschME9.0CANYesYesYes
VolvoV502.5T 2008 >BoschME9.0UDSYesYesYes
VolvoV502.0 TDiSiemensSid 803CANYesYesYes
VolvoV602.0 TDiSiemensSid 803CANYesYesYes
VolvoV701.6 D < 2008BoschEDC16C34CANYesYesYes
VolvoV702.4 D (D5)BoschEDC15C11-4K-LineYesYesYes
VolvoV702.4 D (D5)BoschEDC15C11-4CAN 250kYesYesYes
VolvoV702.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoV702.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoV702.0TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoV702.3TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoV702.4TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoV702.5TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoV702.5T < 2008BoschME9.0CANYesYesYes
VolvoV702.5T 2008 >BoschME9.0UDSYesYesYes
VolvoV702.4 20v 2001<>2006Denso140-170hpCANYesYes

Checksum Button

VolvoXC602.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoXC602.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoXC702.4 D (D5)BoschEDC15C11-4K-LineYesYesYes
VolvoXC702.4 D (D5)BoschEDC15C11-4CAN 250kYesYesYes
VolvoXC702.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoXC702.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoXC702.4TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoXC702.5TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoXC702.5T < 2008BoschME9.0CANYesYesYes
VolvoXC702.5T 2008 >BoschME9.0UDSYesYesYes
VolvoXC902.4 D (D5)BoschEDC15C11-4K-LineYesYesYes
VolvoXC902.4 D (D5)BoschEDC15C11-4CAN 250kYesYesYes
VolvoXC902.4 D (D5) < 2008BoschEDC16C31K-LineYesYesYes
VolvoXC902.4 D (D5) < 2008BoschEDC16C31CANYesYesYes
VolvoXC902.5TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoXC903.0TBoschME7.0/01CAN 250k/500kYesYesYes
VolvoXC903.2 V6 2006Denso175hpCANYesYes

Checksum Button

VolvoXC904.4 V8 2008Denso229hpCANYesYes

Checksum Button

Requirements

Version: 22

Download

Download Files
Password for all archives pc64.ru
Information
Category
First release 29 October 2024
Last update Six months ago
Version v22
Hits 0
Language Русский, Английский
Tags MPPS, MPPS 22,

Top in category

1

Pcmflash v1.2.0/1.2.1 1.2.1

Pcmflash v1.2.0/1.2.1

PCMFlash — это программное обеспечение, используемое для...

2

XENTRY 06.2024 [Final Release] [Cars + Trucks] 06.2024

XENTRY 06.2024 [Final Release] [Cars + Trucks]

Программа для диагностики автомобилей концерна Mercedes-Benz

3

Honda HDS v3.105.012 i-hds 1.008.007 3.105.012

Honda HDS v3.105.012 i-hds 1.008.007

Honda HDS (Honda Diagnostic System)  и i-HDS (Integrated...

4

Toyota Techstream 18.00.008 + активатор 18.00.008

Toyota Techstream 18.00.008 + активатор

Toyota Techstream: Превосходство в диагностике Toyota и...

5

Программа Renault Can CLIP для сканматик 218

Программа Renault Can CLIP для сканматик

Renault CAN Clip — это специализированное программное...

Tags
IObit Smart | Repack | Java | Обработка звука | FL Studio | Piasini | Kaspersky Rescue Disk | Trash | Global World Optimization | Weapons | Pixie | Zoom | SVN | Snappy Driver | DTC | Balabolka | ACDSee | SoapUI Pro | MST | Duolingo Max |
/ Software/ Диагностика авто
